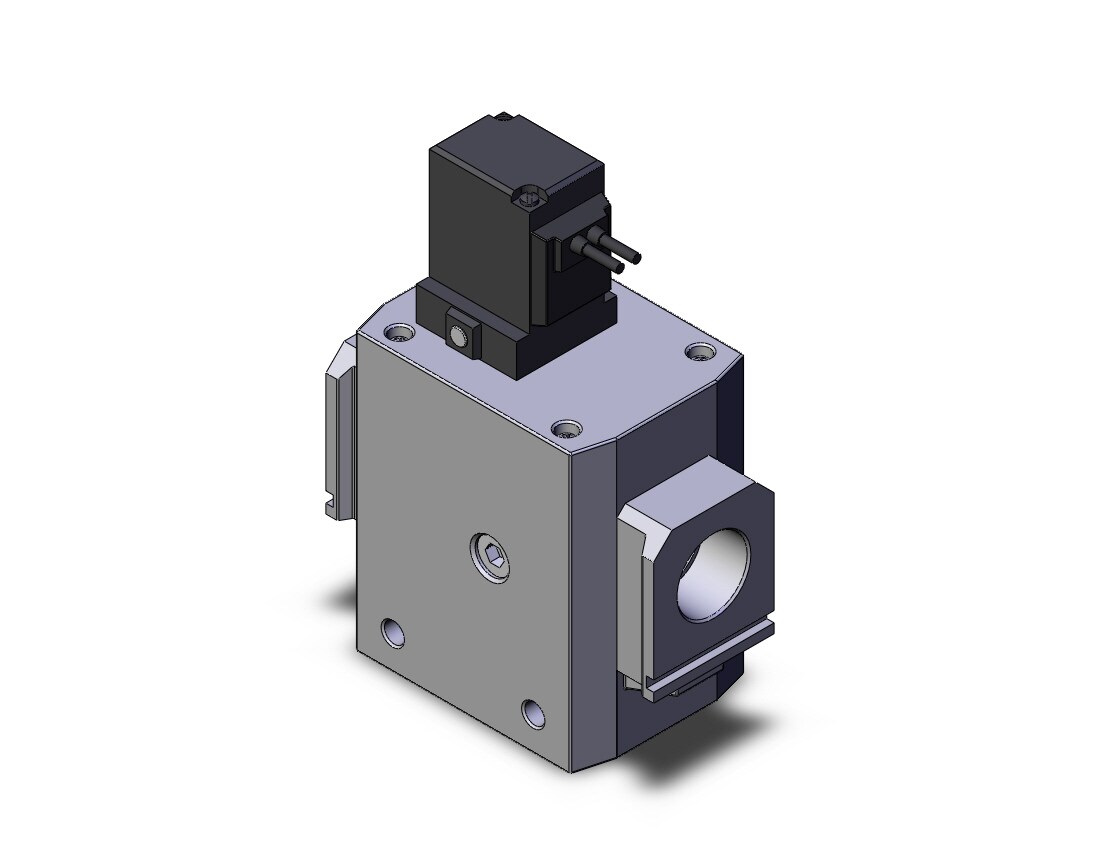

SMC AV4000-N04-5GS valve, soft start 1/2, AV SOFT START UP BODY PORT

Part Number: AV4000-N04-5GS

Series Catalog

Series image - for reference only
Please pull down this page to review full catalog specifications PDF

Your Price: $190.80

Availability:

Available to Ship Today: 0

The item you are trying to purchase is currently out of stock.
Please enter your name, email, and phone number below.
We will contact you as soon as this product is available.

Name: *

Email: *

Phone: *

Verification: *

Type the word above...

Quantity

Description
tab 10
Documents: tab 3
SMC Part Description: tab 4
SMC Products Line: tab 5
SMC Family: tab 1
SMC Family Code: tab 11
SMC Class Description: tab 8
Weight: tab 9
tab 6

Ordering Guide

Series AV is a soft start up valve for low-speed air supply to gradually raise initial pressure in an air system and for quick exhaust by cutting off air supply.

Operating pressure range: 0.2 - 1MPa
Coil rated voltage: 12, 24VDC;
100, 110 to 120, 200, 220VAC
Allowable voltage fluctuation:
-15% to +10% of rated voltage
Ambient and fluid temperature: 0 to 60C
Electrical entry: grommet, type D DIN connector,
type Y DIN connector

Series Catalog

Click Here for Return Policy

VALVE, SOFT START 1/2

VALVE

AV SOFT START UP BODY PORT

AV OTHER SIZE RATING

1.63142 lb

Model

Port size

Proof pressure

Operating pressure range

Pressure gauge port size

Ambient and fluid temperature

Effective area (mm2)

Mass (kg)

Electrical specifications

Pilot valve manual override

1(P) 2(A)

2(A) 3(R)

Rated coil voltage

Allowable voltage fluctuation

Coil insulation type

Apparent power AC(Current consumption)

Current consumption DC

Electrical entry

Option specifications

AV4000

1/2

1.5 MPa

0.2 to 1 MPa

1/8

0 to 60C (1)

0.74

100, 200, 110 to 120, 220 VAC (50/60 Hz), 240 VAC (50/60 Hz) 12, 24 VDC

?15 to +10% of rated voltage

Equivalent to B type (130C)

5.6 VA (50 Hz), 5.0 VA (60 Hz)

3.4 VA (2.1 W)/50 Hz, 2.3 VA (1.5 W)/60 Hz

1.8 W

Grommet, Type D DIN terminal, Type Y DIN terminal

Indicator light/Surge voltage suppressor (2)

Non-locking push type (Flush),Locking type (Tool required), Locking type (Lever)
