2320Z1C3624W Thomas Oil-less WOB-L® Piston Compressor / Vacuum Pump - Voltage: 24V DC

Part Number: 2320Z1C3624W

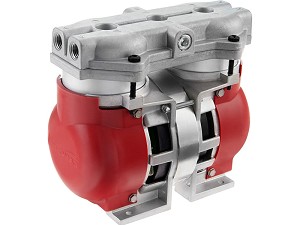

Series image - for reference only
Please pull down this page to review full catalog specifications PDF

Your Price: $1,167.61

Availability:

Available to Ship Today: 16

The item you are trying to purchase is currently out of stock.
Please enter your name, email, and phone number below.
We will contact you as soon as this product is available.

Name: *

Email: *

Phone: *

Verification: *

Type the word above...

Quantity

Description
tab 1

Thomas Oil-less WOB-L Piston Compressor / Vacuum Pump

Flow Rate:
- 3.38 CFM / 95.8 LPM
Max Pressure:
- 60 PSIG / 4.1 bar
Max Vacuum:
- 26.6 in HgV / -900 mbar
Features & Benefits:
- Plug-and-play easy to use BLDC technology
- 24VDC and 48VDC motor options
- Onboard integrated brushless DC (BLDC) motor controller
- Seven convenient fixed speed output selections
- Optional PWM input for variable speed control
- Pressure or vacuum capability
- Proven WOB-L piston technology
- Versatility and ease of pneumatic plumbing
- Durable die-cast aluminum components
- Compact and lightweight design, ideal for portable applications
- Wetted parts treated for corrosion resistance
- Field serviceable
Possible Applications:
- In Vitro Diagnostics
- Ventilator
- Dental Equipment
- Oxygen Concentrator
- Spray Atomization
Net Weight: 7.83 lbs. / 3.55 Kg
