23630127 Thomas VTE 8 Oil-less Rotary Vane Vacuum Pump - Voltage: 3 Phase 200VAC - 480VAC

Part Number: 23630127

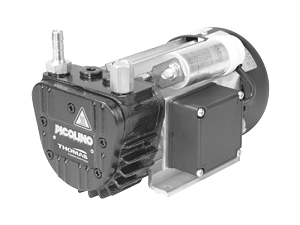

Series image - for reference only
Please pull down this page to review full catalog specifications PDF

Your Price: $906.24

Availability:

Available to Ship Today: 0

The item you are trying to purchase is currently out of stock.
Please enter your name, email, and phone number below.
We will contact you as soon as this product is available.

Name: *

Email: *

Phone: *

Verification: *

Type the word above...

Quantity

Description
tab 1

Thomas / Rietschle VTE8 oil-less rotary vane vacuum pump with 0.59 HP, 200-277/346-480v, 60 Hz, 3-phase TEFC motor. Pump includes carbon vanes and an integral 5 micron inlet filter.

Flow Rate:
- 5.6 CFM / 9.6 m3/hr / 159 LPM
Max Vacuum:
- 25.4 in HgV / 115 Torr / -861 mbar
Horsepower (60 Hz): .59
Voltage (60 Hz): 200 - 277 / 346 - 480
Voltage (50 Hz): 200 - 255 / 346 - 400
Frequency (Hz): 50 / 60
Phase: 3-phase
Item Dimensions:
- Length: 9.8 in / 249 mm
- Width: 6.14 in / 156 mm
- Height: 6.14 in / 156 mm
Net Weight: 17.64 lbs. / 8 Kg
