270080 Thomas TA-6172 Oil-less Articulating Piston Compressor - Voltage: 115V / 230V AC (60 Hz)

Part Number: 270080 Internal Code: G3029013

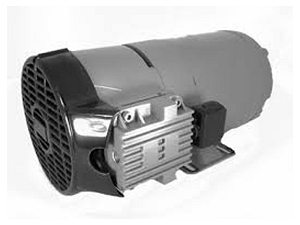

Series image - for reference only
Please pull down this page to review full catalog specifications PDF

Your Price: $2,182.03

Availability:

Available to Ship Today: 0

The item you are trying to purchase is currently out of stock.
Please enter your name, email, and phone number below.
We will contact you as soon as this product is available.

Name: *

Email: *

Phone: *

Verification: *

Type the word above...

Quantity

Description
Documents: tab 3
tab 1

Thomas Oil-less Articulating Piston Compressor

Flow Rate:
- 2.4 CFM / 68 LPM
Max Pressure:
- 175 PSIG / 12.1 bar
Horsepower (60 Hz): .75
Kilowatts (60 Hz): .56
Voltage (60 Hz): 115 / 230
Frequency (Hz): 60
Phase: 1-phase
Item Dimensions:
- Length: 14.3 in / 363 mm
- Width: 11.2 in / 284 mm
- Height: 6.95 in / 177 mm
Net Weight: 56 lbs. / 25.4 Kg

Internal Code: G3029013

Billing Code: 3HCA7

Internal Code: G3029013

Click Here for Return Policy

Series Configured Datasheet
