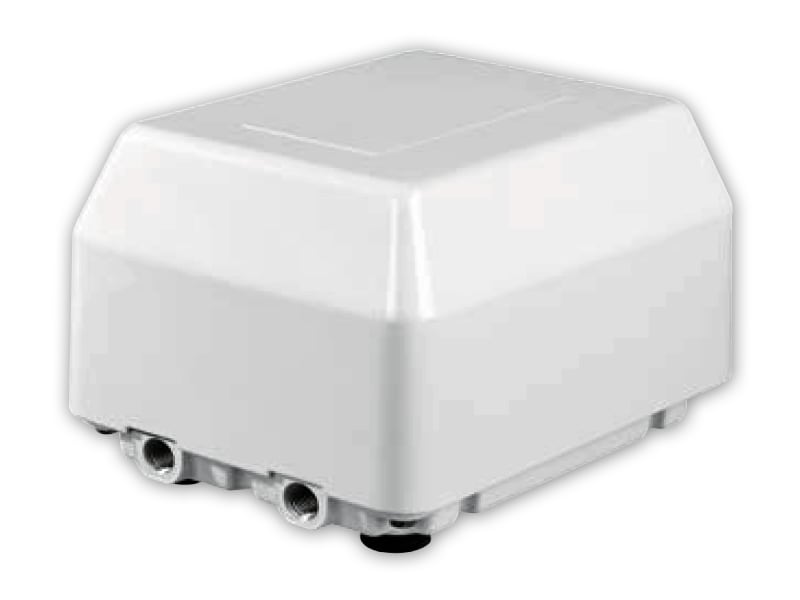

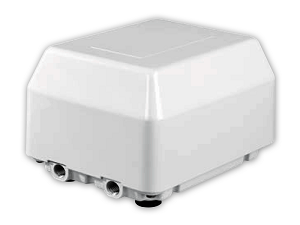

5250-0402 Thomas YP-40VC Oil-less Linear Diaphragm Compressor / Vacuum Pump - Voltage: 230V AC (50/60 Hz)

Part Number: 5250-0402

Series image - for reference only
Please pull down this page to review full catalog specifications PDF

Your Price: $609.51

Availability:

Available to Ship Today: 0

The item you are trying to purchase is currently out of stock.
Please enter your name, email, and phone number below.
We will contact you as soon as this product is available.

Name: *

Email: *

Phone: *

Verification: *

Type the word above...

Quantity

Description
tab 1

Thomas Oil-less Linear Diaphragm Compressor / Vacuum Pump, 230/50/60/1

Flow Rate:
- 43 LPM
Max Pressure:
- 2.9 PSIG / 80 in H20 / 200 mbar
Max Vacuum:
- 5.9 in HgV / -200 mbar
Voltage (60 Hz): 230
Voltage (50 Hz): 230
Frequency (Hz): 50 / 60
Phase: 1-phase
Item Dimensions:
- Length: 8.15 in / 207 mm
- Width: 6.89 in / 175 mm
- Height: 6.42 in / 163 mm
Net Weight: 11.24 lbs. / 5.1 Kg

Click Here for Return Policy

Series Configured Datasheet
