SMC AFD40-N04-RZ micro mist separator modular, AFD MASS PRO

Part Number: AFD40-N04-RZ

Series Catalog

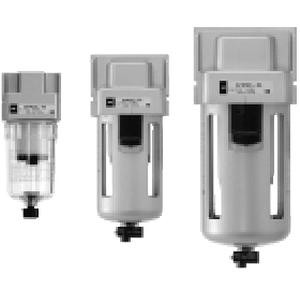

Series image - for reference only
Please pull down this page to review full catalog specifications PDF

Your Price: $59.40

Availability:

Available to Ship Today: 0

The item you are trying to purchase is currently out of stock.
Please enter your name, email, and phone number below.
We will contact you as soon as this product is available.

Name: *

Email: *

Phone: *

Verification: *

Type the word above...

Series Catalog

Click Here for Return Policy

MICRO MIST SEPARATOR MODULAR

AIRLINE EQUIPMENT

AFD MASS PRO

AFD MASS PRO 1/2 MODULAR (NPT)

1.14640 lb

Model

Port size

Fluid

Proof pressure

Maximum operating pressure

Minimum operating pressure

Ambient and fluid temperature

Rated flow ( /min (ANR)) (1)

Nominal filtration rating

Outlet side oil mist concentration

Bowl material

Bowl guard

Drain capacity (cm3)

Weight (kg)

AFD40

1/43/81/2

Air

1.5 MPa

1.0 MPa

0.05 MPa

?5 to 60C (With no freezing)

600

0.01 ?m (95% filtered particle size)

Max. 0.1 mg/m3 (ANR) (Before saturated with oil: 0.01 mg/m3 (ANR) or less, approx. 0.008 ppm) (2)

Polycarbonate

Standard

0.44
