Two million pages dedicated to sales and technology information for the SMC Corporation of America
SMC
SMC PRODUCTS
VALVE
AV SOFT START UP BODY PORT
AV5000-10-3DZ
SMC AV5000-10-3DZ valve, soft start 3/4, AV SOFT START UP BODY PORT
Part Number:
AV5000-10-3DZ
Series Catalog
Zoom in on Image(s)

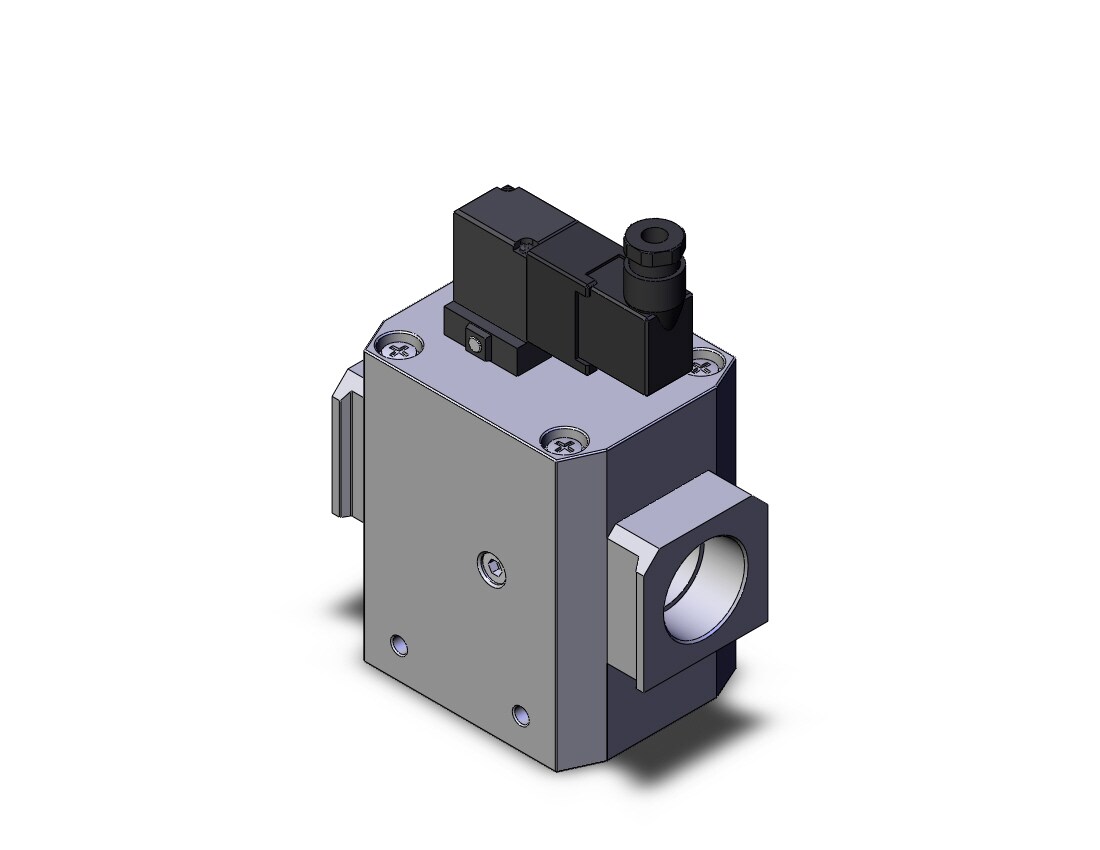

SERIES IMAGE-FOR REFERENCE ONLY
Series image - for reference only
Please pull down this page to review full catalog specifications PDF
Add to Quote
Email Item
Price
Your Price:
$213.20
Availability
This product is obsolete. Please email sales@smcpneumatics.com for the latest version.
Availability:
Available to Ship:
0 qty
VALVE, SOFT START 3/4
Put me on the Waiting List
product tabs
Description
tab 10
Documents:
tab 3
SMC Part Description:
tab 4
SMC Products Line:
tab 5
SMC Family:
tab 1
SMC Family Code:
tab 11
SMC Class Description:
tab 8
Weight:
tab 9
tab 6
Ordering Guide
This product is obsolete. Please contact us for the latest version.
sales@ocaire.com
Series Catalog
Click Here for Return Policy
VALVE, SOFT START 3/4
VALVE
AV SOFT START UP BODY PORT
LA
AV BODY PORT 3/4 PT
3.66520 lb
Model
Port size
Proof pressure
Operating pressure range
Pressure gauge port size
Ambient and fluid temperature
Effective area (mm2)
Mass (kg)
Electrical specifications
Pilot valve manual override
1(P) 2(A)
2(A) 3(R)
Rated coil voltage
Allowable voltage fluctuation
Coil insulation type
Apparent power AC(Current consumption)
Current consumption DC
Electrical entry
Option specifications
AV5000
3/4
1.5 MPa
0.2 to 1 MPa
1/8
0 to 60C (1)
113
132
1.60
100, 200, 110 to 120, 220 VAC (50/60 Hz), 240 VAC (50/60 Hz) 12, 24 VDC
?15 to +10% of rated voltage
Equivalent to B type (130C)
5.6 VA (50 Hz), 5.0 VA (60 Hz)
3.4 VA (2.1 W)/50 Hz, 2.3 VA (1.5 W)/60 Hz
1.8 W
Grommet, Type D DIN terminal, Type Y DIN terminal
Indicator light/Surge voltage suppressor (2)
Non-locking push type (Flush),Locking type (Tool required), Locking type (Lever)
