Two million pages dedicated to sales and technology information for the SMC Corporation of America
SMC
SMC PRODUCTS
AIRLINE EQUIPMENT
AWG MASS PRO
AWG30-N03DG1-Z
SMC AWG30-N03DG1-Z filter regulator w/gauge, AWG MASS PRO
Part Number:
AWG30-N03DG1-Z
Series Catalog
Zoom in on Image(s)

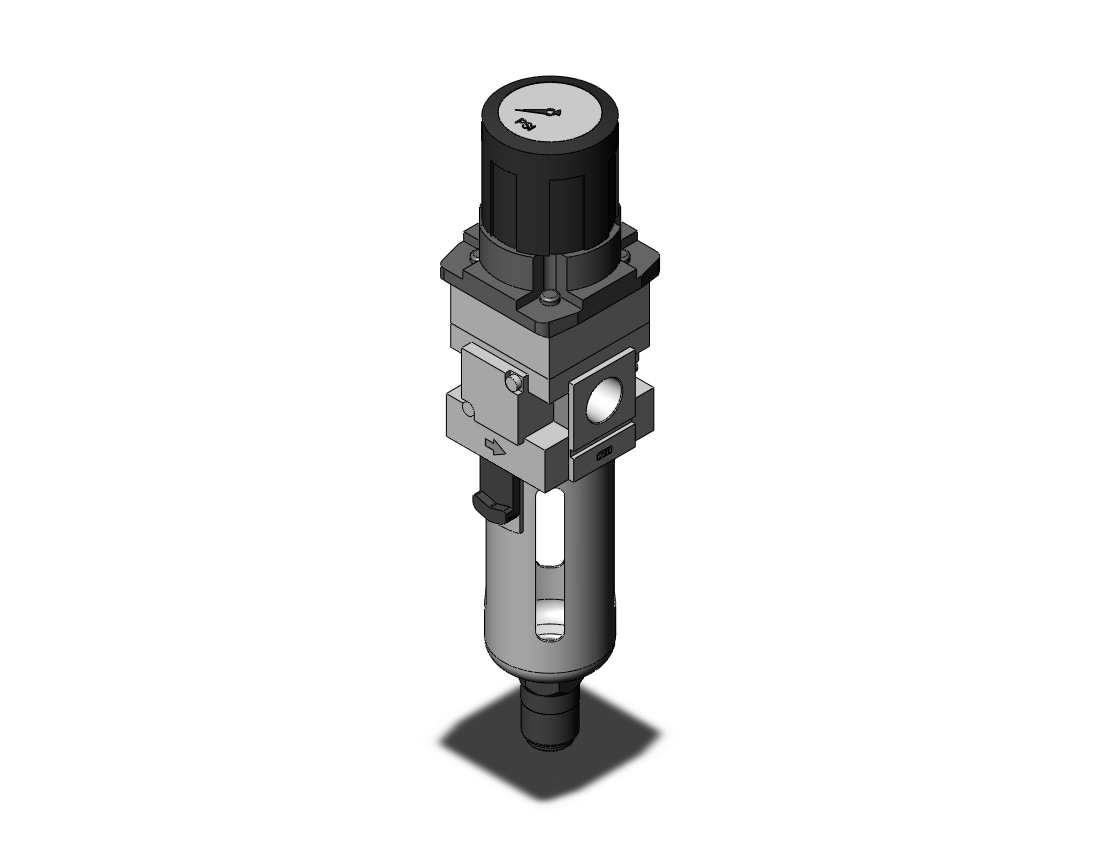

SERIES IMAGE-FOR REFERENCE ONLY
Series image - for reference only
Please pull down this page to review full catalog specifications PDF
Add to Quote
Email Item
Operation Manual
Price
Your Price:
$87.65
Availability
This product is obsolete. Please email sales@smcpneumatics.com for the latest version.
Availability:
Available to Ship:
0 qty
FILTER REGULATOR W/GAUGE
Put me on the Waiting List
product tabs
Description
tab 10
tab 7
Documents:
tab 3
SMC Part Description:
tab 4
SMC Products Line:
tab 5
SMC Family:
tab 1
SMC Family Code:
tab 11
SMC Class Description:
tab 8
Weight:
tab 9
tab 6
Ordering Guide
This is a legacy product, and replaced by
AWG30-N03DG1-Z-B
Series Catalog
Click Here for Return Policy
FILTER REGULATOR W/GAUGE
AIRLINE EQUIPMENT
AWG MASS PRO
EC
AWG MASS PRO 3/8 MODULAR (NPT)
1.63142 lb
Model
Port size
Fluid
Proof pressure
Maximum operating pressure
Regulating pressure range
Relief pressure
Ambient and fluid temperature
Nominal filtration rating
Drain capacity (cm3)
Bowl material
Bowl guard
Construction
Weight (kg)
AWG30
1/4, 3/8
Air
1.5 MPa
1.0 MPa
0.05 to 0.85 MPa
Set pressure + 0.05 MPa (at relief flow rate of 0.1 l/min (ANR))
?5 to 60C (With no freezing)
5 ?m
25
Polycarbonate
Standard
Relieving type
0.51
