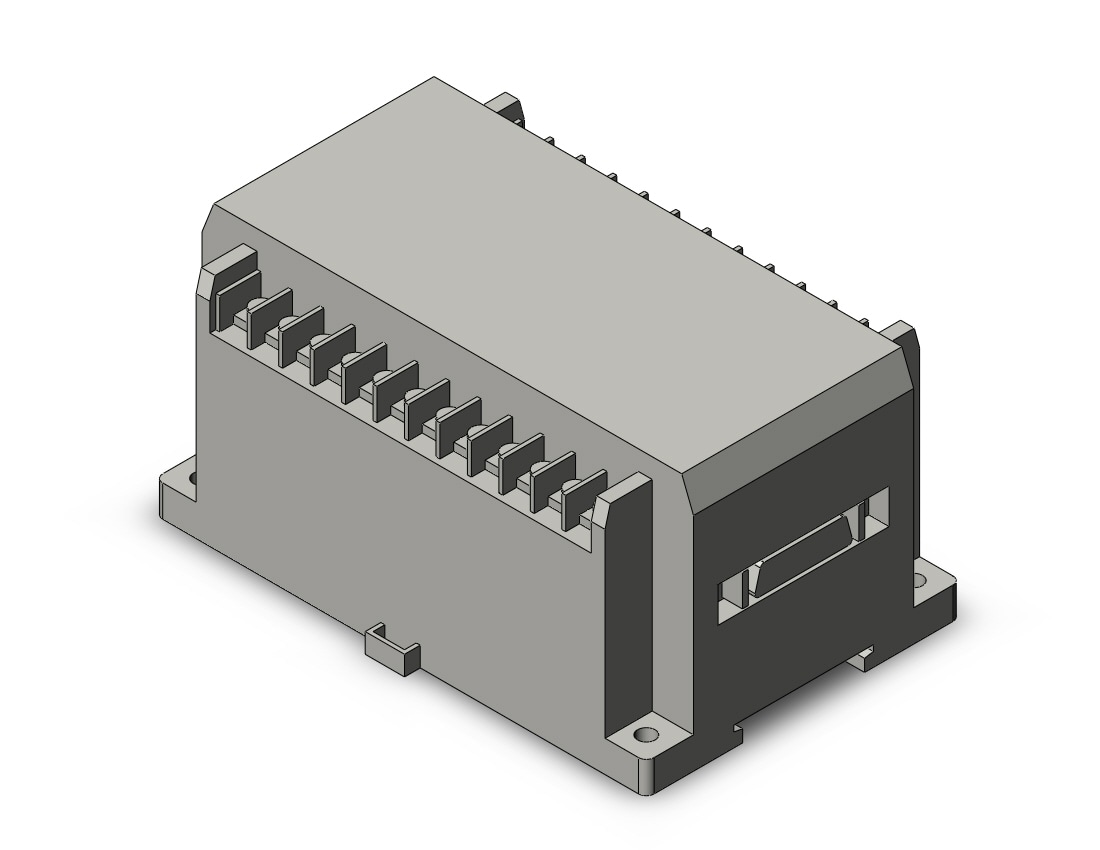

| CEU5PB | Multi-counter | Surface mounting (DIN rail or Screw stop) | Adding - subtracting type | Operating mode, Data setting mode, Function setting mode | External reset terminal | LCD (With back light) | 6 digits | Setting value (always held), Count value (Hold/Non-hold switching), {E2ROM (Warning display after writing approx. 800,000 times: E2FUL)} | Count input, Control signal input (Reset, Hold, Bank selection) | No-voltage pulse input | 90 phase difference input ?1/ UP/DOWN separate input ?2 | 100 kHz ?1 | Voltage input (12 VDC or 24 VDC) | 10.8 to 13.2 VDC, 60 mA | Preset output, Cylinder stop output, BCD output | Compare/Hold/One-shot (100 ms fixed pulse) | Separate 5 point output/Binary code output | 5 ms or less (for normal output) | RS-232C | PNP open collector Max 30 VDC, 50 mA ?3 | 90 to 264 VAC | 20 VA or less | Between case and AC line: 1500 VAC for 1 min. Between case and signal ground: 500 VAC for 1 min. | Between case and AC line: 500 VDC, 50 M or more | 0 to 50C (No freezing) | 35 to 85% RH (No condensation) | Square wave noise from a noise simulator (pulse duration 1 ?s) between power supply terminals ?2000 V, I/O line ?600 V | Endurance 10 to 55 Hz; Amplitude 0.75 mm; X, Y, Z for 2 hours each | Endurance 10 G; X, Y, Z directions, 3 times each | 350 g or less |
