SMC EX600-DXPC1 digital input (8), pnp, 8xm8, EX300 SERIAL INTERFACE UNIT

Part Number: EX600-DXPC1

Series Catalog

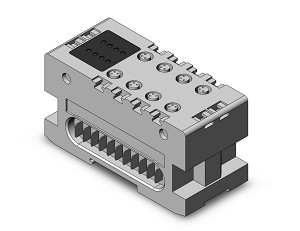

Series image - for reference only
Please pull down this page to review full catalog specifications PDF

Your Price: $200.00

Availability:

Available to Ship Tomorrow*: 707 qty
Available to Ship in 7 Days: 760 qty

The item you are trying to purchase is currently out of stock.
Please enter your name, email, and phone number below.
We will contact you as soon as this product is available.

Name: *

Email: *

Phone: *

Verification: *

Type the word above...

Quantity

Description
tab 10
tab 7
Documents: tab 3
SMC Part Description: tab 4
SMC Products Line: tab 5
SMC Family: tab 1
SMC Family Code: tab 11
SMC Class Description: tab 8
Weight: tab 9
tab 6

Ordering Guide

The EX600 serial interface offers a full suite of diagnostics and programmable parameters to meet the most stringent requirements. The EX600 offers excellent flexibility including digital input, digital output and analog input unit options. With the use of D-sub output blocks, a maximum of 9 remote D-sub manifolds can be attached to one EX600 communication module. This serial interface is compatible with series SV1000/2000/3000, VQC1000/2000/4000, S0700 and the new SY series valves. Available protocols include Profibus-DP, DeviceNet, CC-Link, Ethernet I/P and EtherCat.

Enclosure: IP67(Manifold Assembly)
Operating temp. range: -10~50 C
Operating humidity range: 35~85%RH (no dew condensation)
Standard: CE marking, UL recognition (CSA)
Weight: 290g

Series Catalog

Click Here for Return Policy

DIGITAL INPUT (8), PNP, 8XM8

VALVE

EX300 SERIAL INTERFACE UNIT

EX300

.81196 lb

Model

Input specifications

Current consumption

Indicator

Environmental resistance

Standards

Mass

Input type

Input connector

Number of inputs

Sensor supplied voltage

Maximum sensor supplied voltage

Protection

Input resistance

Rated input current

ON voltage/ON current

OFF voltage/OFF current

Open Note 2) circuit detection current

Enclosure

Operating temperature range

Operating humidity range

Withstand voltage

Insulation resistance

Vibration resistance

Impact resistance

EX600-DXPC

PNP

M8 (3 pins)

8 inputs (1 input/connector)

24 VDC (Supplied from power supply for control and input)

0.25 A/connector2 A/unit

Short-circuit protection

2.7 k

9 mA or less

17 V or more / 5 mA or more(At NPN input, between the pin for input terminal and for sensor supplied voltage of +24 V) (At PNP input, between the pin for input terminal and for sensor supplied voltage of 0 V)

5 V or less / 1 mA or less(At NPN input, between the pin for input terminal and for sensor supplied voltage of +24 V) (At PNP input, between the pin for input terminal and for sensor supplied voltage of 0 V)

0.5 mA or less/input Note 2)

0.5 mA or less/connector Note 2)

55 mA or less

Green LED on (When input is ON.)Red LED on (When short circuit is detected at sensor?s power supply.)Red LED flashing (ON/OFF counter is exceeded, or open circuit is detected. Note 2))

IP67 (Manifold assembly)

?10 to 50C

35 to 85% RH (No dew condensation)

500 VAC for 1 minute between external terminals and FE

500 VDC, 10 M or more between external terminals and FE

10 to 57 Hz with constant amplitude of 0.75 mm p-p 57 to 150 Hz with constant acceleration of 49 m/s2for 2 hours in each direction of X, Y and Z direction (During de-energizing)

147 m/s2 3 times in each direction of X, Y and Z (During de-energizing)

CE marking, UL (CSA) recognition

275 g
