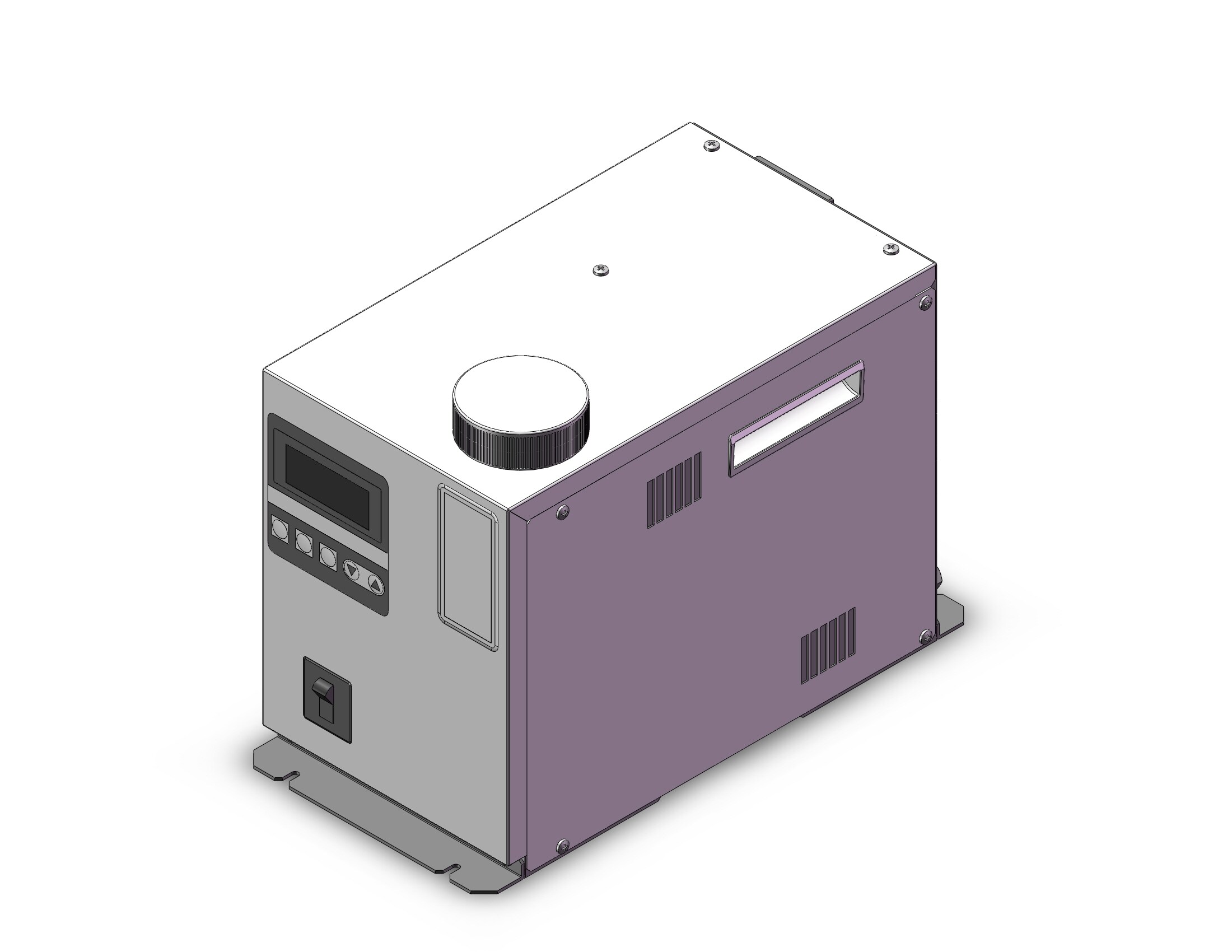

| HEC003-W5B | Thermoelectric device (Thermo-module) | Water-cooled | Cooling/Heating automatic shift PID control | 50 to 95F (10 to 35C), 35 to 80%RH (no condensation) | Clear water, 20% ethylene glycol | 50 to 140F (10 to 60C) (no condensation) | 320 W Note 1) | 770 W Note 1) | ?0.018 to 0.054F (?0.01 to 0.03C) | Refer to performance chart. | Approx. 0.32 gal (1.2 L) | IN/OUT: Rc3/8Drain: Rc1/4 (with plug) | PPE, PP glass 10%, Alumina ceramics, Carbon, EPDM, Stainless steel 303, Stainless steel 304, PE, PP, NBR | 50 to 95F (10 to 35C) (no condensation) | Within 145 psi (1 MPa) | 0.8 to 1.9 gpm (3 to 7 L/min) | IN/OUT: Rc3/8 | Stainless steel 304 | Single-phase 100 to 240 VAC ?10%, 50/60 Hz | 10 A | 5.5 A (100 VAC) to 2.5 A (240 VAC) | Refer to alarm function. | RS-232C | Approx. 28.7 lbs (13 kg) | Power cable, Foot for fixing, Splashproof cover | CE marking, UL (NRTL) standards, SEMI |
