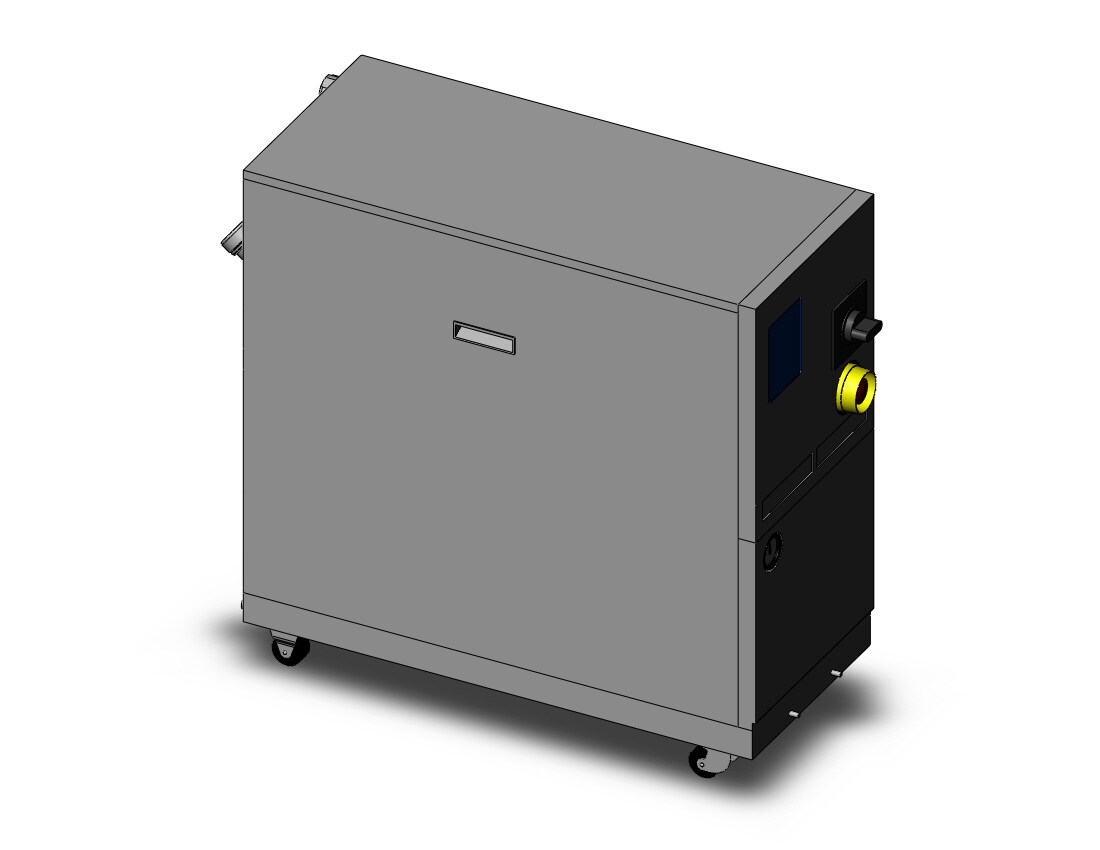

SMC HRZ008-W1-CNY thermo chiller, HRZ- THERMO CHILLER***

Part Number: HRZ008-W1-CNY

Series Catalog

Series image - for reference only
Please pull down this page to review full catalog specifications PDF

Your Price: $40,422.41

Availability:

Available to Ship Today: 0

The item you are trying to purchase is currently out of stock.
Please enter your name, email, and phone number below.
We will contact you as soon as this product is available.

Name: *

Email: *

Phone: *

Verification: *

Type the word above...

Quantity

Description
tab 10
tab 7
Documents: tab 3
SMC Part Description: tab 4
SMC Products Line: tab 5
SMC Family: tab 1
SMC Family Code: tab 11
SMC Class Description: tab 8
Weight: tab 9
tab 6

Ordering Guide

The HRZ series thermo-chiller is a high performance device for circulating fluid with a constant temperature. Available in 3 temperature range designs so the best chiller can be selected for operating temperature needs.? No ventilation holes on the right or left sides make tight fitting installation possible, since contact can be made with other equipment or walls.

Cooling method: water-cooled refrigeration
Circulation fluid: clear water, deionized water
Main tank capacity: approximately 15
Circulating fluid recovery tank: approximately 16

Series Catalog

Click Here for Return Policy

THERMO CHILLER

OTHERS

HRZ- THERMO CHILLER

HRZ - NO SIZE RATING

.00000 lb

Model

Cooling method

Refrigerant

Control system

Ambient temp./humidity Note 1)

Circulating fluid system

Cooling water system

Electrical system

Mass Note 10) (kg)

Safety standards

Circulating fluid Note 2)

Temp. range setting Note 1) ( C)

Cooling capacity Note 3) (kW)

Heating capacity Note 3) (kW)

Temp. stability Note 4) ( C)

Note 5)(MPa)

Rated flow Note 6) (l/min)

Main tank capacity Note 7) ( l )

Sub-tank capacity Note 8) ( l )

Port size

Wetted parts material

Temperature range ( C)

Pressure range (MPa)

Required flow Note 9) (50/60 Hz) (l /min)

Power supply

Breaker capacity (A)

Rated current (A)

Alarm

Communications

HRZ008-W1

Water-cooled refrigeration

R404A (HFC)

PID control

Temperature: 10 to 35 C, Humidity: 30 to 70%RH

Aqueous solution of 60% ethylene glycol

?20 to 90

8.0 (at 20 C)

3.3 (at 20 C)

?0.1

0.25/0.40 (at 20 l/min)

Approx. 15

Approx. 16

Rc 3/4

Stainless steel, EPDM, Copper brazing (Heat exchanger), PPS, Silicone, Fluororesin

10 to 25

0.3 to 0.7

13/14

Rc 1/2

Stainless steel, EPDM, Copper brazing (Heat exchanger), Silicone, Brass

3-phase 200 VAC 50 Hz, 3-phase 200 to 208 VAC 60 Hz Allowable voltage fluctuation ?10%

Refer to page 94.

Contact input/output (D-sub 25 pin) and Serial RS-485 (D-sub 9 pin) (Refer to pages 92 and 93.)

170

UL, CE marking, SEMI (S2-0703, S8-0701, F47-0200), SEMATECH (S2-93, S8-95)
