SMC IDH4-20 dryer, IDF REFRIGERATED DRYER

Part Number: IDH4-20

Series Catalog

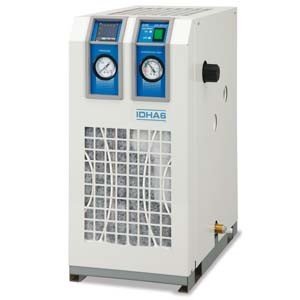

Series image - for reference only
Please pull down this page to review full catalog specifications PDF

Your Price: $3,908.80

Availability:

Available to Ship in 7 Days: 5 qty

The item you are trying to purchase is currently out of stock.
Please enter your name, email, and phone number below.
We will contact you as soon as this product is available.

Name: *

Email: *

Phone: *

Verification: *

Type the word above...

Quantity

Series Catalog

Click Here for Return Policy

DRYER

OTHERS

IDF REFRIGERATED DRYER

IDF OTHER SIZE(MISC./OTHER)

Model Specifications

Note1) 2)Operating range

Rated conditions

Note 3)Rated performance

Electric specifications

Built-in filterspecifications Note 5)

Temperature control method

Refrigerant type/Refrigerant charge

Noise level (reference value) Note 6)

Weight

Applicable drain tube O.D.

Coating color

Applicable directive

Fluid

Air flow capacity

Inlet air temperature

Inlet air pressure

Ambient temperature

Outlet air temperature adjustment range

Outlet air set pressure range

Outlet air set temperature

Outlet air pressure dew point

Outlet air temperature stability

Outlet air temperature display accuracy

Power supply Note 4)

Operating current

Earth leakage breaker capacity

Compressor input

Heater input

Nominal filtration rating

Cleanliness of the filter outlet side

IDH4-20

Compressed air

3.5 to 17.6 scfm (100 to 500 L/min [ANR])

41 to 104F (5 to 40?C)

44 to 145psi (0.3 to 1.0 MPa)

59 to 86F (15 to 35?C) (Relative humidity 85% or less)

59 to 86F (15 to 30?C)

22 to 123psi (0.15 to 0.85 MPa)(The inlet air pressure should be at least 22psi (0.15 MPa) higher than the outlet air pressure.)

14.1 scfm (400 L/min [ANR])

102psi (0.7 MPa)

95F (35?C)

86F (30?C)

50F (10?C)

?0.18F (?0.1?C)

?0.9F (?0.5?C) (including accuracy of the sensor)

Single?phase 200 VAC (50/60 Hz)

2.1 A

5 A

180/200 W 50/60 Hz

220 W

0.01 ?m (99.9% filtration efficiency)

Particles of 0.3 ?m or more: 3.5 particles/L [ANR] or less

Heater operation, PID control

R134a/0.14 kg

52 dB(A)

57 lbs (26 kg)

10 mm

Body panel: White 1 Base: Gray 2

Low Voltage Directive: 2006/95/EC EMC Directive: 2004/108/EC
