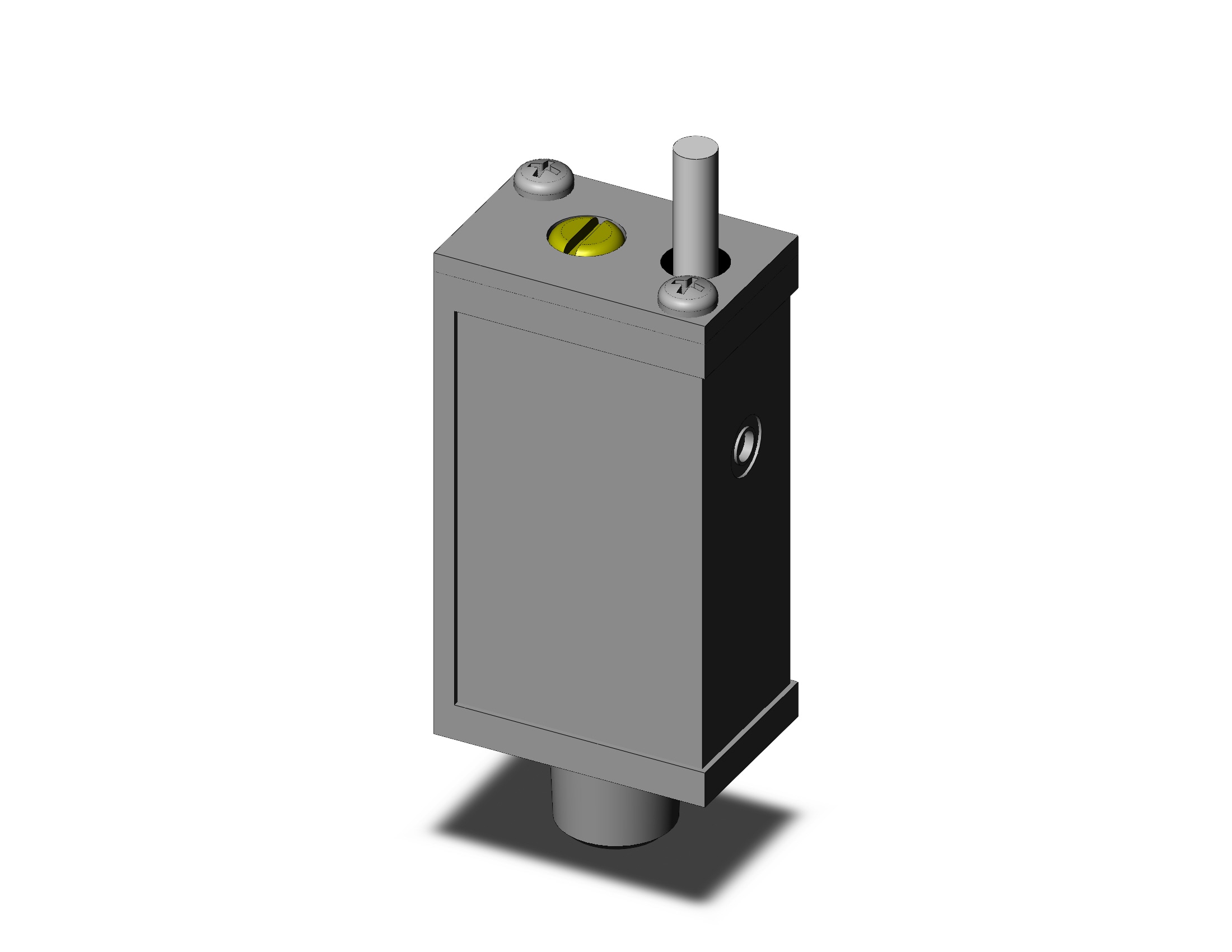

SMC IS10-N01 pressure switch, reed type, IS1000 PRESSURE SWITCH***

Part Number: IS10-N01

Series Catalog

Series image - for reference only
Please pull down this page to review full catalog specifications PDF

Your Price: $59.38

Availability:

Available to Ship Tomorrow*: 78 qty
Available to Ship in 7 Days: 176 qty

The item you are trying to purchase is currently out of stock.
Please enter your name, email, and phone number below.
We will contact you as soon as this product is available.

Name: *

Email: *

Phone: *

Verification: *

Type the word above...

Quantity

Description
tab 10
tab 7
Documents: tab 3
SMC Part Description: tab 4
SMC Products Line: tab 5
SMC Family: tab 1
SMC Family Code: tab 11
SMC Class Description: tab 8
Weight: tab 9
tab 6

Ordering Guide

SMC's?IS10 pressure switch is 16% lighter, and 11% smaller?when compared to the IS1000.? The IS10 is RoHS?compliant and CE marked.? Set pressure range is 0.1 to 0.4MPa (optional 0.1 to 0.6 MPa).? Also available are the IS10M (pressure switch with spacer) and the IS10E (pressure switch with piping adapter).

Weight: 62g (16% lighter than IS1000)
Overall height: 52mm (11% smaller than IS1000)
100V AC/DC specifications
Service life: 5 million cycles
Can be connected to modular type FRL units
RoHS compliant and CE marked

Series Catalog

Click Here for Return Policy

PRESSURE SWITCH, REED TYPE

INSTRUMENTATION

IS1000 PRESSURE SWITCH

IS1000 1/8 INCNPT VERSION

.14960 lb

Model	Port size	Material	Sensor cable	Mass
Model	Port size	Material	Sensor cable	With sensor cable	Without sensor cable
01	R 1/8M5 x 0.8	Case: C3604 + nickel plated, Piping port/pressure sensor: Stainless steel 316L	PSE56 - : Oil proof heavy-duty vinyl cable with air tube, 3 cores, ?5.1, 3 m, Conductor area: 0.2 mm2, Insulator O.D.: 1.12 mm PSE56 - -28: Oil proof heavy-duty vinyl cable with air tube, 2 cores, ?5.1, 3 m, Conductor area: 0.2 mm2, Insulator O.D.: 1.12 mm	193 g	101 g
N01	NPT 1/8M5 x 0.8	Case: C3604 + nickel plated, Piping port/pressure sensor: Stainless steel 316L	PSE56 - : Oil proof heavy-duty vinyl cable with air tube, 3 cores, ?5.1, 3 m, Conductor area: 0.2 mm2, Insulator O.D.: 1.12 mm PSE56 - -28: Oil proof heavy-duty vinyl cable with air tube, 2 cores, ?5.1, 3 m, Conductor area: 0.2 mm2, Insulator O.D.: 1.12 mm	194 g	102 g
