SMC ISE2-T1-15CL pressure switch, ISE2 PRESSURE SWITCH

Part Number: ISE2-T1-15CL

Series Catalog

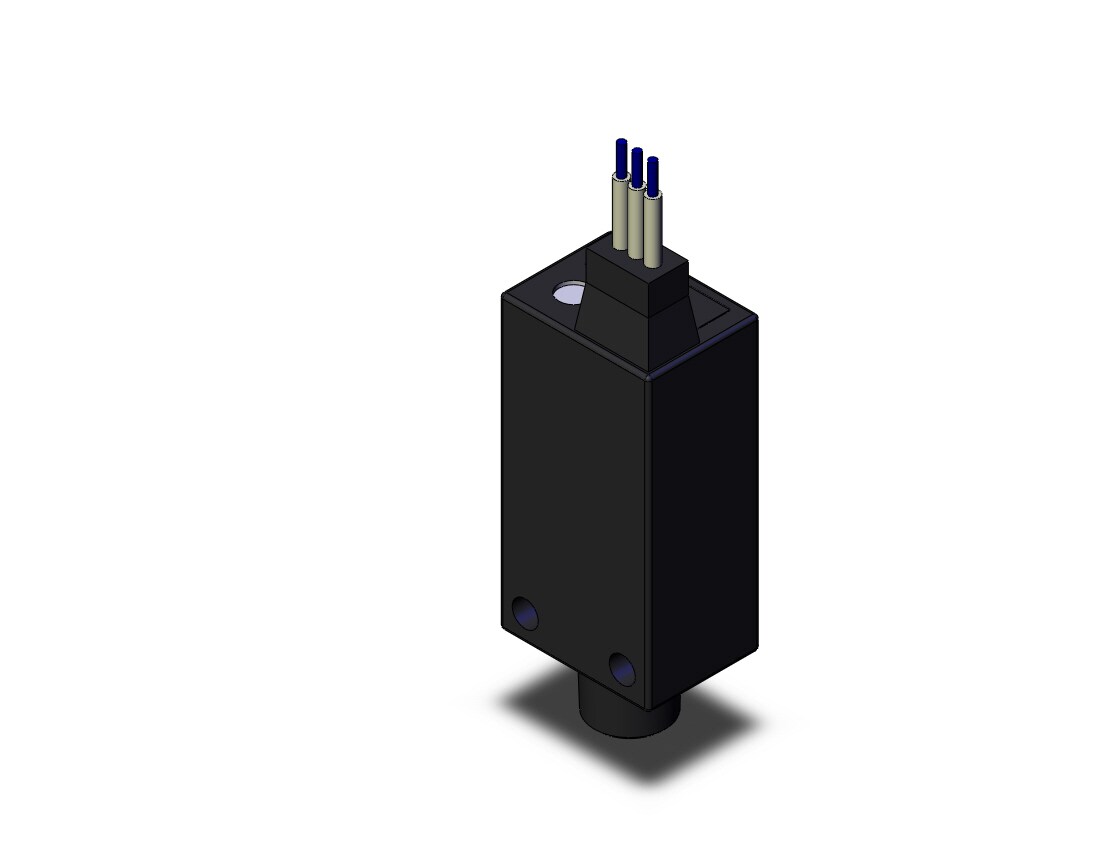

Series image - for reference only
Please pull down this page to review full catalog specifications PDF

Your Price: $79.90

Availability:

Available to Ship: 0 qty

The item you are trying to purchase is currently out of stock.
Please enter your name, email, and phone number below.
We will contact you as soon as this product is available.

Name: *

Email: *

Phone: *

Verification: *

Type the word above...

Quantity

Description
tab 10
tab 7
Documents: tab 3
SMC Part Description: tab 4
SMC Products Line: tab 5
SMC Family: tab 1
SMC Family Code: tab 11
SMC Class Description: tab 8
Weight: tab 9
tab 6

Ordering Guide

The ISE2 series is a compact, pressure switch (for positive pressure) and can be integrated with ZX or ZR vacuum systems. The ISE2 series pressure switch has a quick response time of 10mS and the plug connector option makes wiring easy and simple.

Series Catalog

Click Here for Return Policy

PRESSURE SWITCH

INSTRUMENTATION

ISE2 PRESSURE SWITCH

ISE2 1/8INCH NPT VERSION

.17600 lb

Model

Rated pressure range/Set pressure range

Proof pressure

Fluid

Power supply voltage

Current consumption

Response time

Repeatability

Resistance

Temperature characteristics(Based on 25C)

Withstand voltage

Insulation resistance

Port size

Mass

Lead wire

Standard

ISE2

For positive pressure

0 to 1 MPa

1.5 MPa

Air/Non-corrosive, non-flammable gas

12 to 24 VDC ?10%, Ripple (P-P) 10% or less (With power supply polarity protection)

17 mA or less at 24 VDC

5 ms or less

?1% F.S. or less

IP40

Operating: 0 to 60C, Stored: ?10 to 60C (With no condensation and no freezing)

Operating/Stored: 35 to 85%RH (With no condensation)

10 to 500 Hz at whichever is smaller of 1.5 mm amplitude or 98 m/s2 acceleration, in X, Y, Z directions for 2 hrs. each (De-energized)

980 m/s2 in X, Y, Z directions, 3 times each (De-energized)

?3% F.S. or less

1000 VAC for 1 min. (between live parts and case)

50 M or more (at 500 VDC by megameter) between live parts and case

01: R 1/8, M5 x 0.8 T1: NPTF 1/8, M5 x 0.80X: With suction filter (For mounting on ZX unit) 0R: Base mount type (For mounting on ZR unit)

35 g (Including 0.6 m-Long lead wire)

Oil-resistant vinyl cabtire code 3 cores, ?3.4, Cross section: 0.2 mm2, Insulator O.D.: 1.1 mm

Heat-resistant vinyl electric wire, 3-wire, Cross section: 0.31 mm2, Insulator O.D.: 1.55 mm

Compliant with CE marking
