Two million pages dedicated to sales and technology information for the SMC Corporation of America
SMC
SMC PRODUCTS
INSTRUMENTATION
IT2000 - ITV2000 E - P REGULATOR
ITV2090-04N2L5
SMC ITV2090-04N2L5 regulator, electro-pneumatic, IT2000/ITV2000 E/P REGULATOR
Part Number:
ITV2090-04N2L5
Catalog
Operation Manual
Zoom in on Image(s)

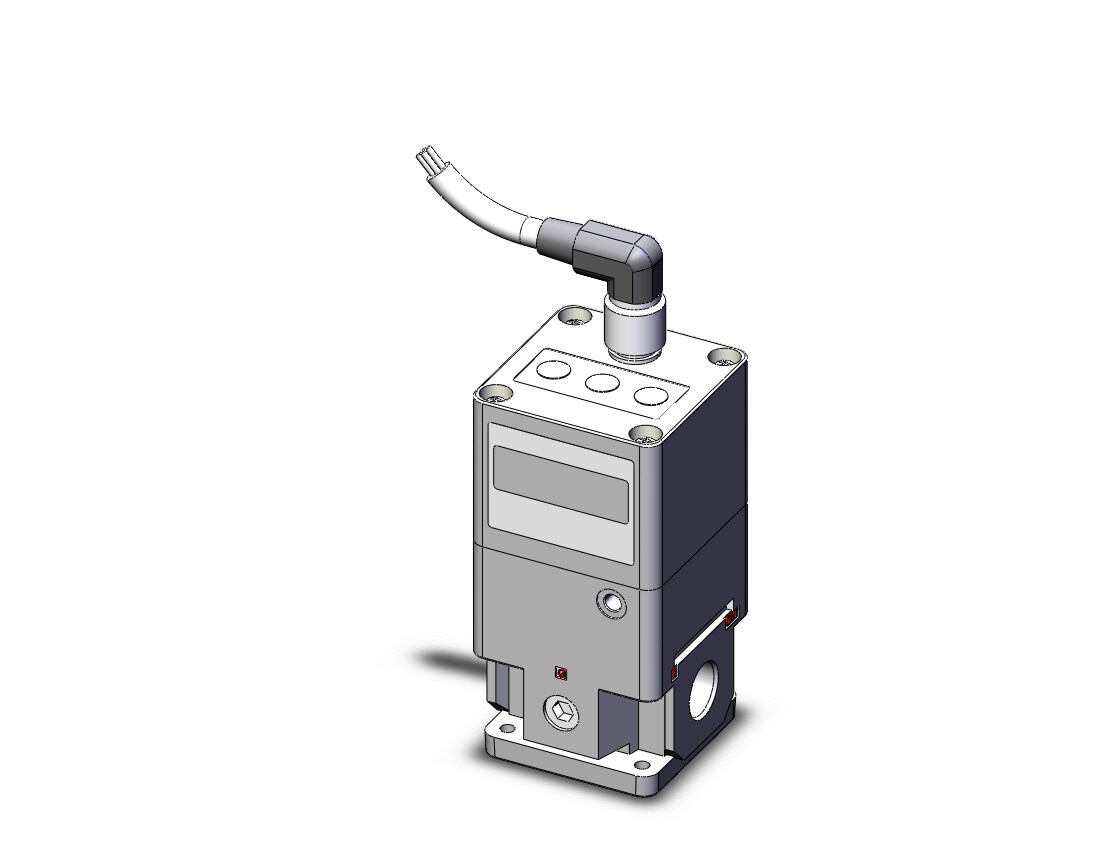

SERIES IMAGE-FOR REFERENCE ONLY
Series image - for reference only
Please pull down this page to review full catalog specifications PDF
Play Video
Thumbnail
Add to Quote
Email Item
Operation Manual
Price
Your Price:
$407.15
Availability
This product is obsolete. Please email sales@smcpneumatics.com for the latest version.
Availability:
Available to Ship Today:
0
REGULATOR, ELECTRO-PNEUMATIC
Put me on the Waiting List
product tabs
Description
tab 7
Documents:
tab 3
SMC Part Description:
tab 4
SMC Products Line:
tab 5
SMC Family:
tab 1
SMC Family Code:
tab 11
SMC Class Description:
tab 8
Weight:
tab 9
tab 6
This product is obsolete. Please contact us for the latest version.
sales@ocaire.com
Catalog
Operation Manual
Click Here for Return Policy
REGULATOR, ELECTRO-PNEUMATIC
INSTRUMENTATION
IT2000/ITV2000 E/P REGULATOR
DB
IT2000 1/4 INCNPT VERSION
.77161 lb
Model
Power supply
Minimum supply vacuum pressure Note 1)
Maximum supply vacuum pressure
Set pressure range
Input signal
Input impedance
Note 4)Output signal (Monitor output)
Linearity
Hysteresis
Repeatability
Sensitivity
Temperature characteristics
Output pressure display
Ambient and fluid temperature
Enclosure
Weight Note 7)
Voltage
Current consumption
Current type Note 2)
Voltage type
Preset input
Current type
Analog output
Switch output
Accuracy
Units
ITV2090
24 VDC ?10%
Power supply voltage 24 VDC type: 0.12 A or less Note 6)Power supply voltage 12 to 15 VDC type: 0.18 A or less
Set pressure ?13.3 kPa
?101 kPa
?1.3 to ?80 kPa
4 to 20 mA DC, 0 to 20 mA DC
0 to 5 VDC, 0 to 10 VDC
4 points (Negative common)
250 or less Note 3)
Approximately 6.5 k
Power supply voltage 24 VDC type: Approximately 4.7 k Power supply voltage 12 VDC type: Approximately 2.0 k
1 to 5 VDC (Load impedance: 1 k or more)4 to 20 mA DC (Sink type) (Load impedance: 250 or less)Output accuracy within ?6% (Full span)
NPN open collector output: Max. 30 V, 80 mA PNP open collector output: Max. 80 mA
Within ?1% (Full span)
Within 0.5% (Full span)
Within ?0.5% (Full span)
Within 0.2% (Full span)
Within ?0.12% (Full span)/C
?2%F.S. 1 digit
kPa Note 5) Minimum display: 1
0 to 50C (No condensation)
IP65
350 g
