| Model | Compatible motor capacity [W] | Compatible encoder | Main power supply | Control power supply | Communication specifications | Command method | Communication function | Operating temperature range [nC] | Operating humidity range [%RH] | Storage temperature range [nC] | Storage humidity range [%RH] | Insulation resistance [M7] | Weight [g] |
| Power voltage [V] | Allowable voltage fluctuation [V] | Rated current [A] | Control power supply voltage [V] | Applicable Fieldbus protocol (Version) | Connection cable | Remote station number | Cable length | I/O occupation area (Inputs/Outputs) | Number of connectable drivers | Remote register input | Point table No. input | Indexer positioning input |

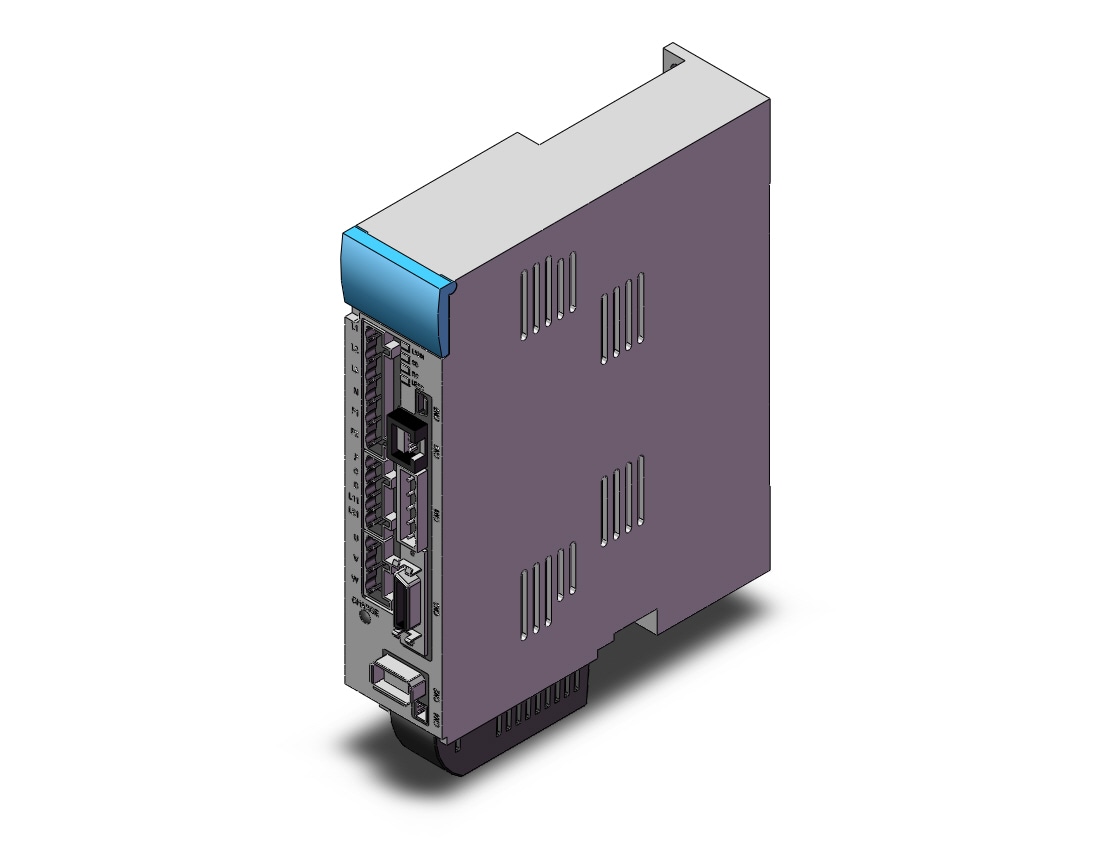

| LECSC2-S7 | 200 | Absolute 18-bit encoder (Resolution: 262144 p/rev) | Three phase 200 to 230 VAC (50/60 Hz) Single phase 200 to 230 VAC (50/60 Hz) | Three phase 170 to 253 VAC, Single phase 170 to 253 VAC | 1.5 | Single phase 200 to 230 VAC (50/60 Hz) | Single phase 170 to 253 VAC | 0.2 | CC-Link communication (Ver. 1.10) | CC-Link Ver. 1.10 compliant cable (Shielded 3-core twisted pair cable) 1 | 1 to 64 | 5 M | 160 | 0.2 or more | 1 station occupied (Remote I/O 32 points/32 points)/(Remote register 4 words/4 words) 2 stations occupied (Remote I/O 64 points/64 points)/(Remote register 8 words/8 words) | Up to 42 (when 1 station is occupied by 1 driver), Up to 32 (when 2 stations are occupied by 1 driver), when there are only remote device stations. | Available with CC-Link communication (2 stations occupied) | Available with CC-Link communication, RS-422 communication CC-Link communication (1 station occupied): 31 pointsCC-Link communication (2 stations occupied): 255 points RS-422 communication: 255 points | Available with CC-Link communicationCC-Link communication (1 station occupied): 31 points CC-Link communication (2 stations occupied): 255 points | USB communication, RS-422 communication 2 | 0 to 55 (No freezing) | 90 or less (No condensation) | 20 to 65 (No freezing) | 90 or less (No condensation) | Between the housing and SG: 10 (500 VDC) | 800 |
