Two million pages dedicated to sales and technology information for the SMC Corporation of America
SMC
SMC PRODUCTS
VALVE
LVM110 CHEMICAL VALVE, 3-PORT
LVM105R-5A2U
SMC LVM105R-5A2U valve, chemical, base mounted, LVM110 CHEMICAL VALVE, 3-PORT
Part Number:
LVM105R-5A2U
Series Catalog
Zoom in on Image(s)

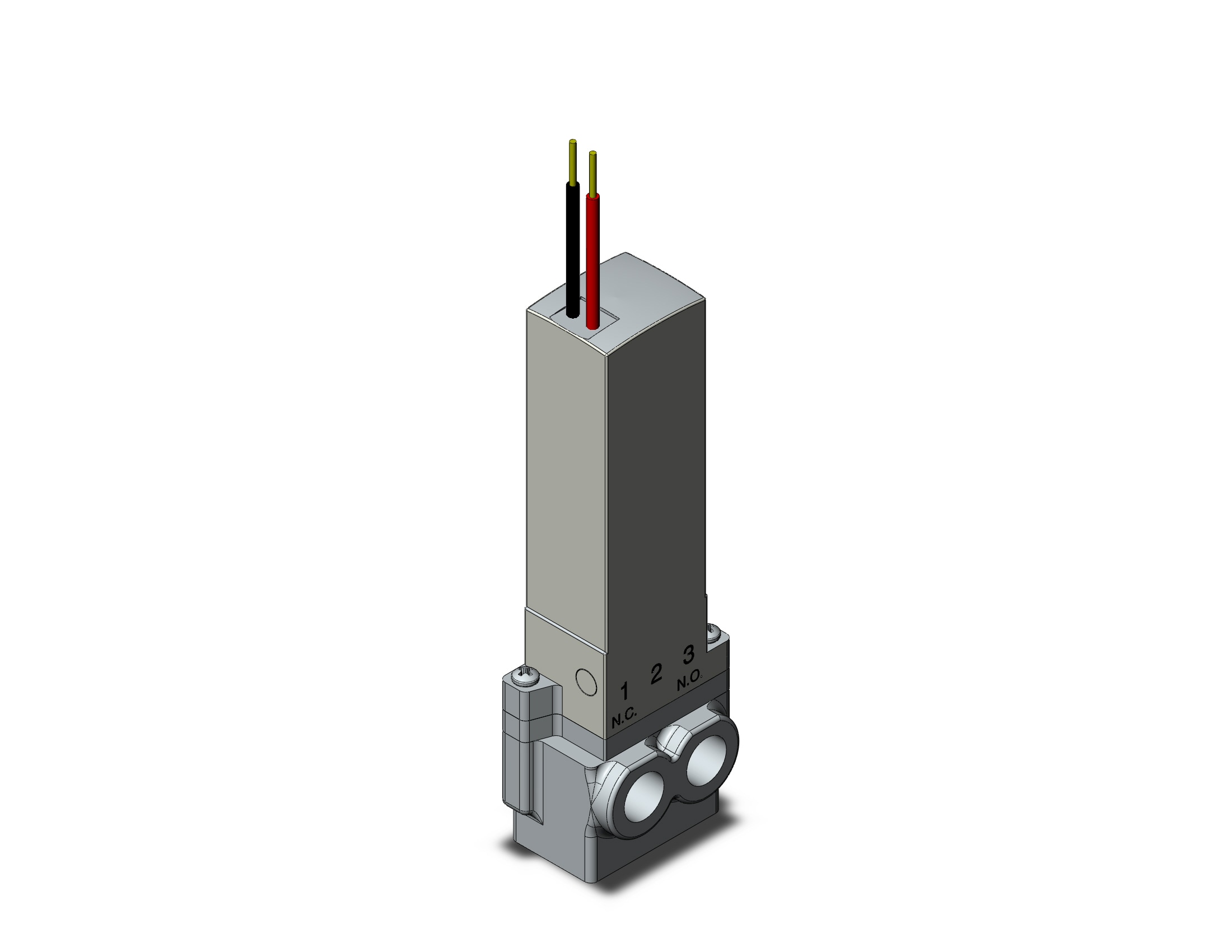

SERIES IMAGE-FOR REFERENCE ONLY
Series image - for reference only
Please pull down this page to review full catalog specifications PDF
Add to Quote
Email Item
Price
Your Price:
$85.00
Availability
This product is obsolete. Please email sales@smcpneumatics.com for the latest version.
Availability:
Available to Ship Today:
0
VALVE, CHEMICAL, BASE MOUNTED
Put me on the Waiting List
product tabs
Description
tab 10
Documents:
tab 3
SMC Part Description:
tab 4
SMC Products Line:
tab 5
SMC Family:
tab 1
SMC Family Code:
tab 11
SMC Class Description:
tab 8
Weight:
tab 9
tab 6
Ordering Guide
This product is obsolete. Please contact us for the latest version.
sales@ocaire.com
Series Catalog
Click Here for Return Policy
VALVE, CHEMICAL, BASE MOUNTED
VALVE
LVM110 CHEMICAL VALVE, 3-PORT
2I
LVM 3-PORT, NO SIZE RATING
.12859 lb
Model
Valve construction
Valve type
Number of ports
Fluid Note 1)
Operating pressure range
Orifice diameter
Response time
Leakage
Proof pressure Note 2)
Ambient temperature
Fluid temperature
Volume of valve chamber
Mounting orientation
Enclosure
Weight
Rated voltage
Allowable Note 5)voltage fluctuation
Type of coil insulation
Power consump- tion (When rated voltageis at 24 V)
Coil switching noise Note 5)
Base mounted
LVM105R
Diaphragm type direct operated poppet (Rocker type)
Universal
3
Air, Water, Pure water, Diluent, Cleaning solvent
?75 kPa to 0.25 MPa
1.4 mm
10 ms or less (at pneumatic pressure)
Zero leakage, either external or internal (at water pressure)
0.38 MPa
0 to 50C
0 to 50C (with no condensation)
20 l
Free
IP40 or equivalent
34 g (without sub-plate), 42 g (with sub-plate)
12, 24 VDC
?10% of rated voltage
Class B
1.5 W(0.06 A)
2.5 W(0.1 A)
1 W
50 dB
