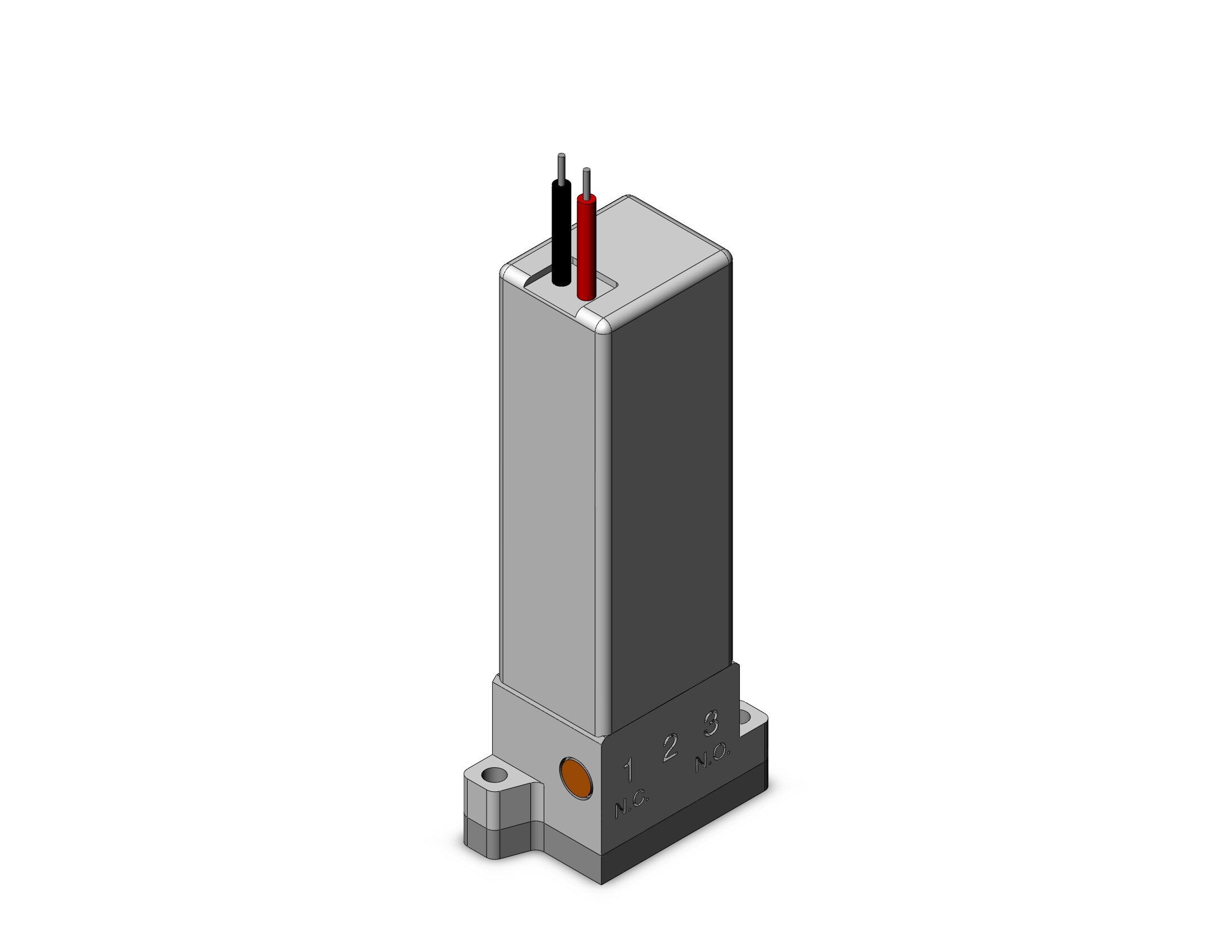

SMC LVM10R3Y-5C-10-Q valve, chemical, base mounted, LVM CHEMICAL VALVE, 2 PORT

Part Number: LVM10R3Y-5C-10-Q

Series Catalog

Series image - for reference only
Please pull down this page to review full catalog specifications PDF

Your Price: $83.50

Availability:

Available to Ship Today: 0

The item you are trying to purchase is currently out of stock.
Please enter your name, email, and phone number below.
We will contact you as soon as this product is available.

Name: *

Email: *

Phone: *

Verification: *

Type the word above...

Series Catalog

Click Here for Return Policy

VALVE, CHEMICAL, BASE MOUNTED

VALVE

LVM CHEMICAL VALVE, 2 PORT

LVM BODY PORT, NO SIZE RATING

.09259 lb

Model

Valve construction

Valve type

Number of ports

Fluid Note 1)

Operating pressure range

Orifice diameter

Response time

Leakage

Proof pressure Note 2)

Ambient temperature

Fluid temperature

Volume of valve chamber

Mounting orientation

Enclosure

Weight

Rated voltage

Allowable Note 5)voltage fluctuation

Type of coil insulation

Power consump- tion (When rated voltageis at 24 V)

Coil switching noise Note 5)

Base mounted

LVM10R3

Diaphragm type direct operated poppet (Rocker type)

N.C.

Air, Water, Pure water, Diluent, Cleaning solvent

?75 kPa to 0.25 MPa

1.4 mm

10 ms or less (at pneumatic pressure)

Zero leakage, either external or internal (at water pressure)

0.38 MPa

0 to 50C

0 to 50C (with no condensation)

20 l

Free

IP40 or equivalent

34 g (without sub-plate), 42 g (with sub-plate)

12, 24 VDC

?10% of rated voltage

Class B

1.5 W(0.06 A)

2.5 W(0.1 A)

1 W

50 dB
