SMC
SMC PRODUCTS
ACTUATOR
MSU ROTARY ACTUATOR W - TABLE
MSUA7-90SE
SMC MSUA7-90SE cyl, rotary table, sgl vane, MSU ROTARY ACTUATOR W/TABLE
Part Number:
MSUA7-90SE
Series Catalog
Zoom in on Image(s)

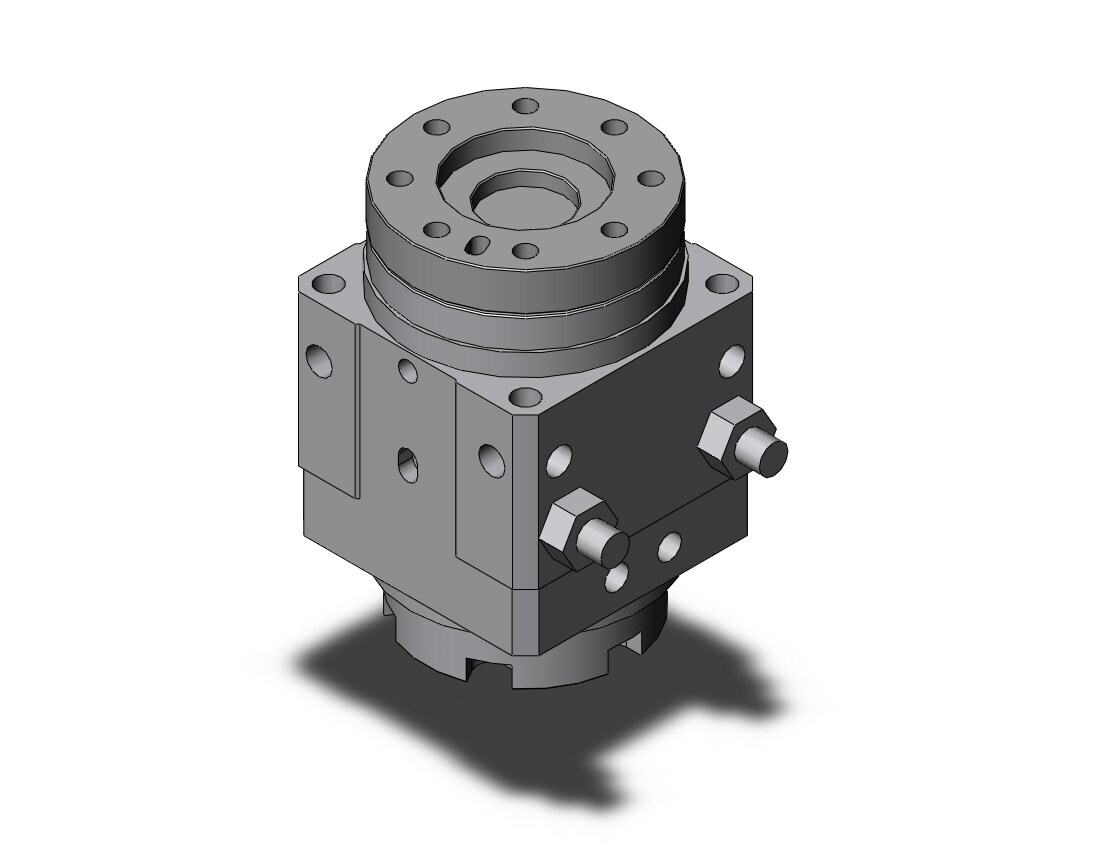

SERIES IMAGE-FOR REFERENCE ONLY
Series image - for reference only
Please pull down this page to review full catalog specifications PDF
Add to Quote
Email Item
Operation Manual
Price
Your Price:
$215.95
Availability
This product is obsolete. Please email sales@smcpneumatics.com for the latest version.
Availability:
Available to Ship Today:
0
ACTUATOR
Put me on the Waiting List
product tabs
Description
tab 10
tab 7
Documents:
tab 3
SMC Part Description:
tab 4
SMC Products Line:
tab 5
SMC Family:
tab 1
SMC Family Code:
tab 11
SMC Class Description:
tab 8
Weight:
tab 9
tab 6
Ordering Guide
This product is obsolete. Please contact us for the latest version.
sales@ocaire.com
Series Catalog
Click Here for Return Policy
CYL, ROTARY TABLE, SGL VANE
ACTUATOR
MSU ROTARY ACTUATOR W/TABLE
1S
MSU OTHER SIZE RATING
1.10231 lb
Model ?2
Vane type
Rotating angle ?1
Fluid
Proof pressure (MPa)
Ambient and fluid temperature
Operating pressure range (MPa)
Rotation time adjustment range (s/90)
Shaft load
Bearing
Port location
Port size
Deflection accuracy
MSUA7
Single vane
90 ? 10
Air (Non-lube)
1.05
5 to 60C
0.15 to 0.7
0.07 to 0.3 (0.5 MPa)
50 N
60 N
0.9 N?m
Special bearing
Side ported or Top ported
M5 x 0.8
M5 x 0.8
0.03 mm or less
