Two million pages dedicated to sales and technology information for the SMC Corporation of America
SMC
SMC PRODUCTS
ACTUATOR
MXP GUIDED CYLINDER
MXP8-20N

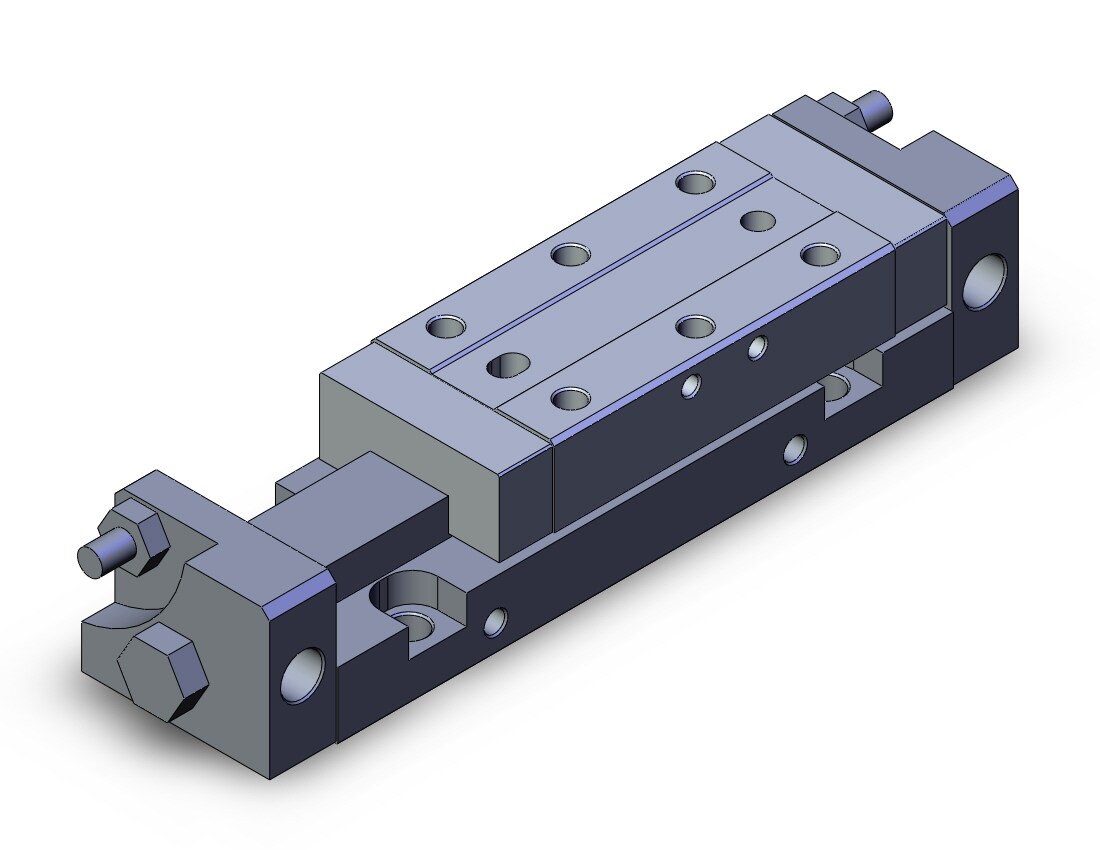

SMC MXP8-20N cyl, slide table, MXP GUIDED CYLINDER
Part Number:
MXP8-20N
Series Catalog
Zoom in on Image(s)
SERIES IMAGE-FOR REFERENCE ONLY
Series image - for reference only
Please pull down this page to review full catalog specifications PDF
Add to Quote
Email Item
Price
Your Price:
$197.75
Availability
This product is obsolete. Please email sales@smcpneumatics.com for the latest version.
Availability:
Available to Ship Today:
0
ACTUATOR
Put me on the Waiting List
product tabs
Description
tab 10
Documents:
tab 3
SMC Part Description:
tab 4
SMC Products Line:
tab 5
SMC Family:
tab 1
SMC Family Code:
tab 11
SMC Class Description:
tab 8
Weight:
tab 9
tab 6
Ordering Guide
This product is obsolete. Please contact us for the latest version.
sales@ocaire.com
Series Catalog
Click Here for Return Policy
CYL, SLIDE TABLE
ACTUATOR
MXP GUIDED CYLINDER
DD
8MM MXP DBL-ACTING
.45144 lb
Model
Bore size (mm)
Piping port size
Fluid
Action
Operating pressure
Proof pressure
Ambient and fluid temperature
Piston speed
Cushion
Lubrication
Stroke adjuster
Stroke adjustment range
Auto switch
Stroke length tolerance
MXP8
8
M5 x 0.8
Air
Double acting
0.15 to 0.7 MPa
1.05 MPa
?10 to 60C
50 to 500 mm/s(Adjuster option/Metal stopper: 50 to 200 mm/s)
Rubber bumperShock absorber (Option is not available for Series MXP6 and MXP8)None (Adjuster option/Metal stopper)
Non-lube
Standard equipment (Adjustable on one side only, for the MXP6)
0 to 5 mm on one side only
??
0 to 6 mm on one side only
Reed auto switch (2-wire, 3-wire) Solid state auto switch (2-wire, 3-wire)2-color indication solid state auto switch (2-wire, 3-wire)
+10 mm
