NVM430-N01-08 VALVE, MECH L 1/8 NPT

Part Number: NVM430-N01-08

Series Catalog

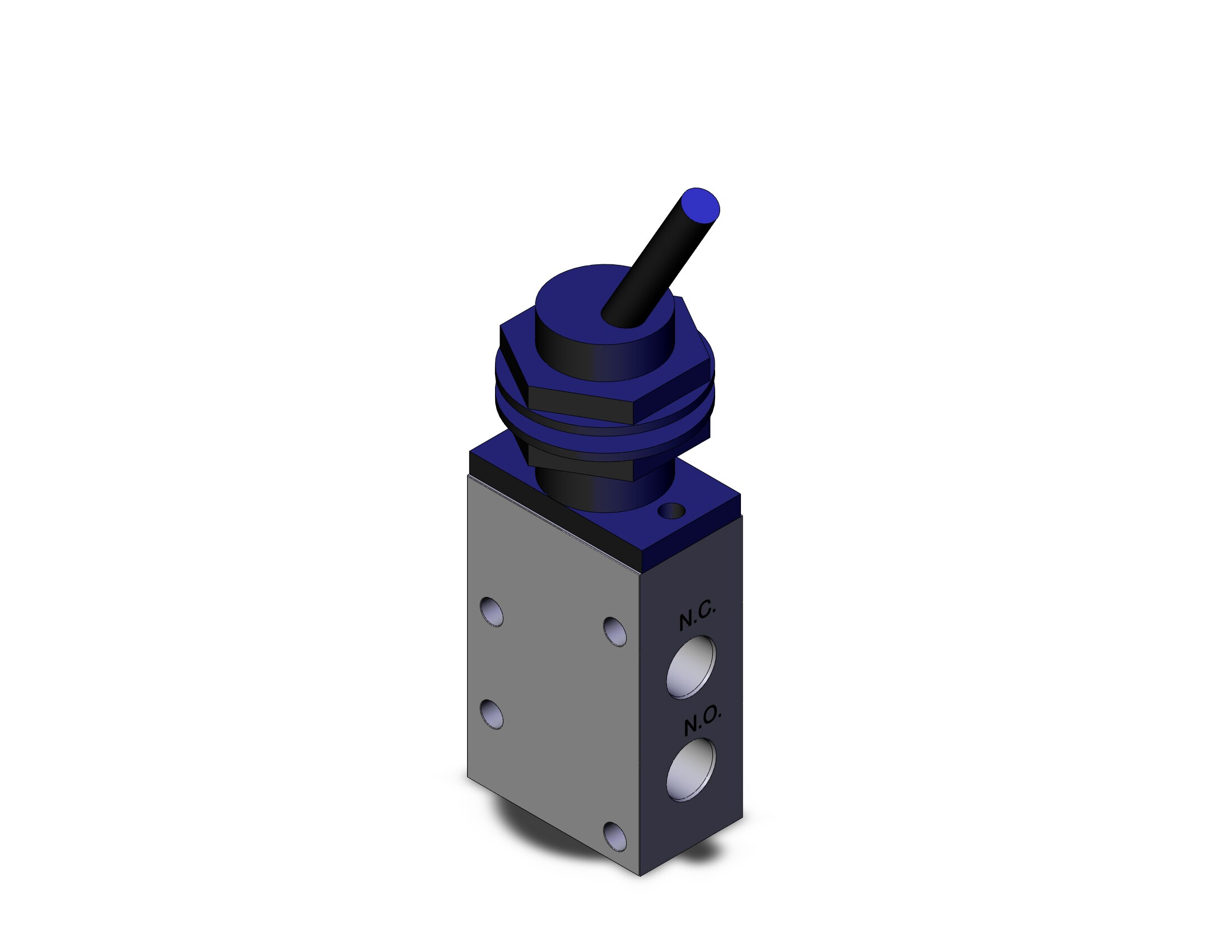

Series image - for reference only
Please pull down this page to review full catalog specifications PDF

Your Price: $34.20

Availability:

Available to Ship: 0 qty

The item you are trying to purchase is currently out of stock.
Please enter your name, email, and phone number below.
We will contact you as soon as this product is available.

Name: *

Email: *

Phone: *

Verification: *

Type the word above...

Quantity

Description
Documents: tab 3
SMC Part Description: tab 4
SMC Products Line: tab 5
SMC Class Description: tab 8
Weight: tab 9
tab 6

The VM series is a mechanical, poppet valve. Their compact size requires little mounting space. The VM series offers a wide variety of actuator styles and flow capacity up to 1.0 Cv.

Fluid: air
Operating pressure: -100kPa to 1.0MPa
Effective area (Cv): 7mm² (0.38)
Ambient and fluid temperature: -5 to 60 C (no freezing)
Port size (nominal size): 1/8 (6A)
North American threads-NPT

Series Catalog

Click Here for Return Policy

VALVE, MECH L 1/8 NPT

VALVE

VM BODY PT 1/8NPT (F)

.44000 lb

Model	Port size	Material	Sensor cable	Mass
Model	Port size	Material	Sensor cable	With sensor cable	Without sensor cable
01	R 1/8M5 x 0.8	Case: C3604 + nickel plated, Piping port/pressure sensor: Stainless steel 316L	PSE56 - : Oil proof heavy-duty vinyl cable with air tube, 3 cores, ?5.1, 3 m, Conductor area: 0.2 mm2, Insulator O.D.: 1.12 mm PSE56 - -28: Oil proof heavy-duty vinyl cable with air tube, 2 cores, ?5.1, 3 m, Conductor area: 0.2 mm2, Insulator O.D.: 1.12 mm	193 g	101 g
