SMC PF2A750-N01-67 digital flow sw, integ sensor, IF/PFA FLOW SWITCH

Part Number: PF2A750-N01-67

Series Catalog

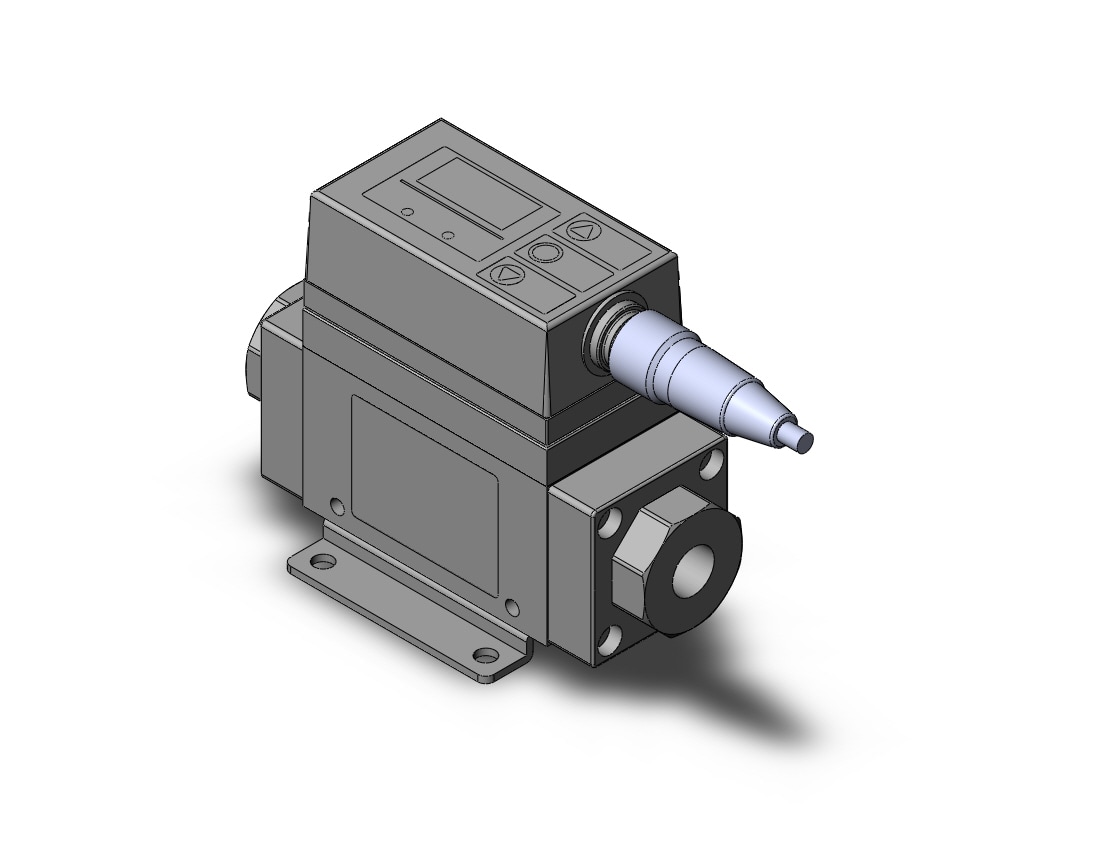

Series image - for reference only
Please pull down this page to review full catalog specifications PDF

Your Price: $535.63

Availability:

Available to Ship Today: 0

The item you are trying to purchase is currently out of stock.
Please enter your name, email, and phone number below.
We will contact you as soon as this product is available.

Name: *

Email: *

Phone: *

Verification: *

Type the word above...

Quantity

Description
tab 10
tab 7
Documents: tab 3
SMC Part Description: tab 4
SMC Products Line: tab 5
SMC Family: tab 1
SMC Family Code: tab 11
SMC Class Description: tab 8
Weight: tab 9
tab 6

Ordering Guide

SMC offers a variety of digital flow switches. Series PF2A for air, PF2W for water, PF2D for deionized water and chemicals. Flow rate setting and monitoring are possible with the digital display. Integrated and remote type displays are available for different types of application. Water resistant construction is used conforming to IP65 protection. Switching from real-time flow rate to accumulated flow is possible.

Digital flow switch for air applications
Integrated display type
Flow rate range: 1-10(l/min) ~ 50-500(l/min)
Output for display unit with or w/o analog output
Port sizes: 1/8, 1/4, 3/8, 1/2

Series Catalog

Click Here for Return Policy

DIGITAL FLOW SW, INTEG SENSOR

INSTRUMENTATION

IF/PFA FLOW SWITCH

IF/PFA 1/8 INCH NPT VERSION

.97422 lb

Model

Measured fluid

Flow rate measurement range

Set flow rate range

Rated flow range

Minimum set unit

Accumulated pulse flow rate exchange value (Pulse width: 50 ms)

Note 1, 2)Display units

Operating fluid temperature

Linearity

Repeatability

Temperature characteristics

Current consumption (No load)

Weight Note 3)

Port size (Rc, NPT, G)

Detection type

Indicator light

Operating pressure range

Proof pressure

Accumulated flow range Note 4)

Output Note 5)specifications

Status LED?s

Response time

Hysteresis

Power supply voltage

Resistance

PF2A750

Air, Nitrogen

2.5 to 52.5 l/min

5 to 50 l/min

0.5 l/min

0.5 l/pulse

l/min, CFM x 10-2

l, ft3 x 10-1

0 to 50C

?5% F.S. or less

?1% F.S. or less

?3% F.S. or less (15 to 35C, based on 25C), ?5% F.S. or less (0 to 50C, based on 25C)

150 mA or less

250 g

1/8, 1/4

Heater type

3-digit, 7-segment LED

?50 kPa to 0.5 MPa

1.0 MPa

0 to 999999 l

NPN open collector Maximum load current: 80 mA; Internal voltage drop: 1 V or less (with load current of 80 mA) Maximum applied voltage: 30 V; 2 outputs

PNP open collector Maximum load current: 80 mAInternal voltage drop: 1.5 V or less (with load current of 80 mA); 2 outputs

NPN or PNP open collector (same as switch output)

Illuminates up when output is ON OUT1: Green; OUT2: Red

1 sec. or less

Hysteresis mode: Variable (can be set from 0), Window comparator mode Note 6) : 3-digit fixed

12 to 24 VDC (ripple ?10% or less)

IP65

Operating: 0 to 50C, Stored: ?25 to 85C (with no freezing and condensation)

1000 VAC for 1 min. between external terminal and case

50M or more (500 VDC Mega) between external terminal and case.

10 to 500 Hz with a 1.5 mm amplitude or 98 m/s2 acceleration, in each X, Y, Z direction for 2 hrs, whichever is smaller. (de-energized)

490 m/s2 in X, Y, Z directions 3 times each

1000 Vp-p, Pulse width 1 ?s, Rise time 1 ns
