SMC PF2W200-MB controller, water, IFW/PFW FLOW SWITCH

Part Number: PF2W200-MB

Series Catalog

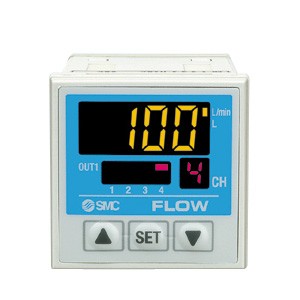

Series image - for reference only
Please pull down this page to review full catalog specifications PDF

Your Price: $308.75

Availability:

Available to Ship Today: 0

The item you are trying to purchase is currently out of stock.
Please enter your name, email, and phone number below.
We will contact you as soon as this product is available.

Name: *

Email: *

Phone: *

Verification: *

Type the word above...

Quantity

Series Catalog

Click Here for Return Policy

CONTROLLER, WATER

INSTRUMENTATION

IFW/PFW FLOW SWITCH

IFW/PFW NO SIZE ALL OTHER

.49965 lb

Model

Applicable flow rate sensor

Flow rate measurement range Note 1)

Set flow rate range Note 1)

Minimum set unit Note 1)

Accumulated pulse flow rate exchange value (Pulse width: 50 ms) Note 1)

Note 1)Display units

Accumulated flow range Note 1)

Power supply voltage

Current consumption

Power supply voltage for sensor

Power supply current for sensor Note 2)

Sensor input

Output Note 3)specifications

Hysteresis

Response time Note 4)

Linearity Note 4)

Repeatability Note 4)

Temperature characteristics

Display method

Status LED?s

Resistance

Connection

Material

Weight

PF2W200/201

PF2W504/504T- -1

0.35 to 4.50 l/min

0.05 l/min

0.05 l/pulse

Real-time flow rate

Accumulated flow

0 to 999999 l, 0 to 999999 gal(US)

24 VDC (ripple ?10% or less) (With power supply polarity protection)

55 mA or less (Note including the current consumption of the sensor)

Same as [Power supply voltage]

Max. 110 mA (However, the total current for the 4 inputs is 440 mA maximum or less.)

1 to 5 VDC (Input impedance: Approx. 800K )

No. of inputs

Input protection

Switch output(Real-time switch output, accumulated switch output)

Accumulated pulse output

No. of outputs

Output protection

Hysteresis mode: Variable (can be set from 0), Window comparator mode: Fixed (3-digits)

1s or less

?5% F.S. or less

?3% F.S. or less

?2% F.S. or less (0 to 50C, based on 25C)

For measured value display: 4-digits, 7-segment LED (Orange) For channel display: 1-digit, 7-segment LED (Red)

Illuminates when output is ON OUT1: Red

Enclosure

Operating temperature range

Operating humidity range

Vibration resistance

Impact resistance

Noise resistance

Power supply / Output connection: 8P connector, Sensor connection: 4P connector (e-con)

Housing: PBT, Display: PET, Backside rubber: CR

60 g (Except for any accessories that are shipped together)
