SMC PF2W300-TIO0397LS ifw/pfw no size all other, IFW/PFW FLOW SWITCH

Part Number: PF2W300-TIO0397LS

Series Catalog

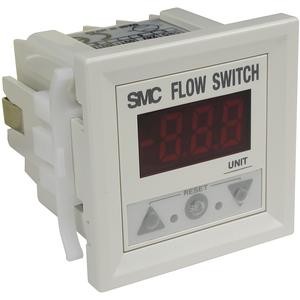

Series image - for reference only
Please pull down this page to review full catalog specifications PDF

Your Price: $1,353.20

Availability:

Available to Ship Today: 0

The item you are trying to purchase is currently out of stock.
Please enter your name, email, and phone number below.
We will contact you as soon as this product is available.

Name: *

Email: *

Phone: *

Verification: *

Type the word above...

Quantity

Series Catalog

Click Here for Return Policy

IFW/PFW NO SIZE ALL OTHER

INSTRUMENTATION

IFW/PFW FLOW SWITCH

IFW/PFW NO SIZE ALL OTHER

Model

Flow rate measurement range Note 1)

Set flow rate range Note 1)

Minimum set unit Note 1)

Accumulated pulse flow rate exchangevalue (Pulse width: 50 ms) Note 1)

Note 2) Display units

Accumulated flow range Note 3)

Linearity Note 4)

Repeatability Note 4)

Temperature characteristics

Current consumption (No load)

Weight

Output Note 5)specifications

Resistance

Indicator light

Status LED?s

Power supply voltage

Response time

Hysteresis

PF2W300/301

0.35 to 4.5 l/min

0.05 l/min

0.05 l/pulse

Real-time flow rate

Accumulated flow

0 to 999999 l

?5% F.S. or less

?3% F.S. or less

?2% F.S. or less (0 to 50C, based on 25C), ?1% F.S. or less (15 to 35C, based on 25C)

50 mA or less

45 g

Switch output

Accumulated pulse output

Enclosure

Operating temperature range

Withstand voltage

Insulation resistance

Vibration resistance

Impact resistance

Noise resistance

3-digit, 7-segment LED

Illuminates when output is ON, OUT1: Green; OUT2: Red

12 to 24 VDC (ripple ?10% or less)

1 sec. or less

Hysteresis mode: Variable (can be set from 0) Window comparator mode: 3-digit fixed Note 6)
