SMC PF2W520-N03 digital flow sw, remote sensor, IFW/PFW FLOW SWITCH

Part Number: PF2W520-N03

Series Catalog

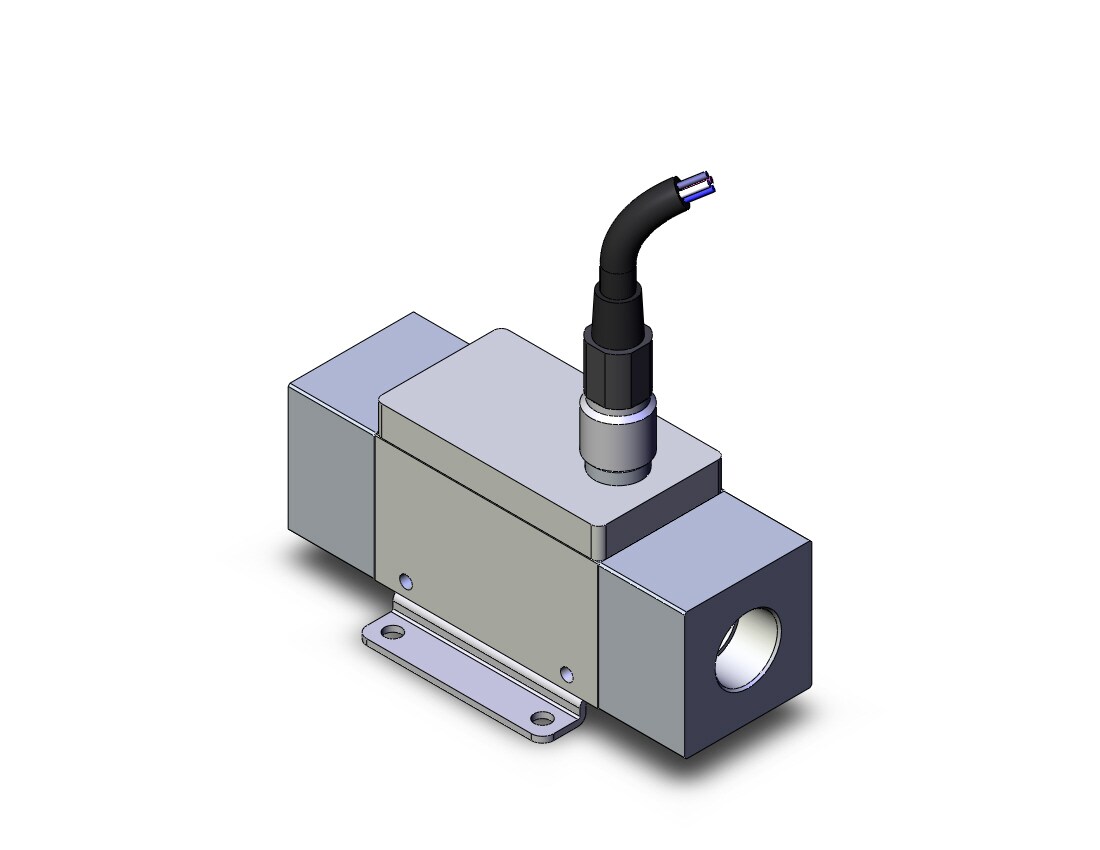

Series image - for reference only
Please pull down this page to review full catalog specifications PDF

Your Price: $365.91

Availability:

Available to Ship in 7 Days: 74 qty

The item you are trying to purchase is currently out of stock.
Please enter your name, email, and phone number below.
We will contact you as soon as this product is available.

Name: *

Email: *

Phone: *

Verification: *

Type the word above...

Series Catalog

Click Here for Return Policy

DIGITAL FLOW SW, REMOTE SENSOR

INSTRUMENTATION

IFW/PFW FLOW SWITCH

IFW/PFW 3/8INCH NPT VERSION

2.53531 lb

Model

Measured fluid

Detection type

Rated flow range

Operating pressure range

Withstand pressure

Operating fluid temperature

Linearity Note 1)

Repeatability Note 1)

Temperature characteristics

Output Note 2)specifications

Power supply voltage

Current consumption (No load)

Resistance

Weight Note 3)

Port size (Rc, NPT, G)

PF2W520

Water

Karman vortex

2 to 16 l/min

0 to 1 MPa

1.5 MPa

0 to 50C

?5% F.S. or less

?3% F.S. or less

?2% F.S. or less (15 to 35C based on 25C), ?3% F.S. or less (0 to 50C, based on 25C)

Pulse output, N channel, open drain, output for display unit PF2W3 . (Specifications: Maximum load current of 10 mA; Maximum applied voltage of 30 V)

Voltage output 1 to 5 VLinearity: ?5% F.S. or less; allowable load resistance: 100 k or more.

Current output 4 to 20 mALinearity: ?5% F.S. or less; allowable load resistance: 300 or less with 12 VDC, 600 or less with 24 VDC

12 to 24 VDC (ripple ?10% or less)

20 mA or less

IP65

Operating: 0 to 50C, Stored: ?25 to 85C (with no freezing and condensation)

1000 VAC for 1 min. between external terminal and case

50M or more (500 VDC Mega) between external terminal and case

10 to 500 Hz with a 1.5 mm amplitude or 98 m/s2 acceleration, whichever is smaller.

490 m/s2 in X, Y, Z directions 3 times each

1000 Vp-p, Pulse width 1 ?s, Rise time 1 ns

470 g

3/8, 1/2
