SMC ZSE1-015 vacuum switch, ZSE1 VACUUM SWITCH

Part Number: ZSE1-015

Series Catalog

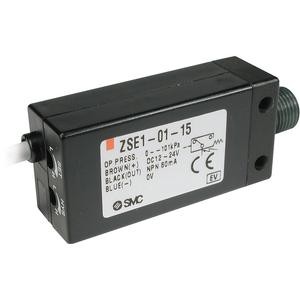

Series image - for reference only
Please pull down this page to review full catalog specifications PDF

Your Price: $171.55

Availability:

Available to Ship Today: 0

The item you are trying to purchase is currently out of stock.
Please enter your name, email, and phone number below.
We will contact you as soon as this product is available.

Name: *

Email: *

Phone: *

Verification: *

Type the word above...

Quantity

Series Catalog

Click Here for Return Policy

VACUUM SWITCH

VACUUM SERIES

ZSE1 VACUUM SWITCH

ZSE1 1/8 PORTED

.18096 lb

Model

Rated pressure range/Set pressure range

Expanded analog output range

Proof pressure

Fluid

Power supply voltage

Current consumption

Response time

Repeatability

Resistance

Temperature characteristics (Based on 25C)

Withstand voltage

Insulation resistance

Port size

Mass

Lead wire

Standard

ZSE1

For vacuum

0 to ?101 kPa

10 to 0 kPa

500 kPa

Air/Non-corrosive, non-flammable gas

12 to 24 VDC ?10%, Ripple (P-P)10% or less (With power supply polarity protection)

1 output: 17 mA or less at 24 VDC, 2 output: 25 mA or less at 24 VDC

5 ms or less

?1% F.S. or less

Enclosure

Operating temperature range

Operating humidity range

Vibration resistance

Impact resistance

?3% F.S. or less

1000 VAC for 1 min. (between live parts and case)

50 M or more (at 500 VDC by megameter) between live parts and case

01: R 8, M5 x 0.8 T1: NPTF 1/8, M5 x 0.8 00: ZM ejector mount type

40 g (Including 0.6 m-Long lead wire)

Grommet type

Connector type

Compliant with CE marking
