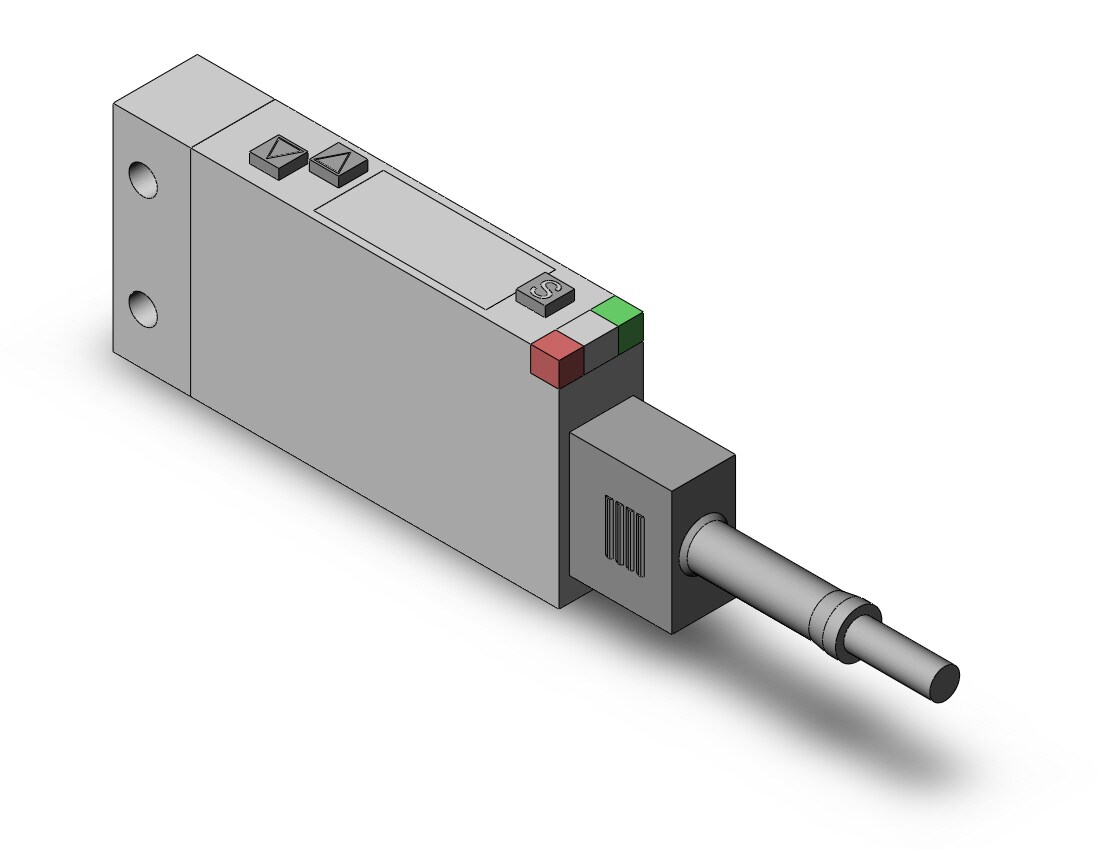

| ZSE10F | ?100.0 to 100.0 kPa | ?105.0 to 105.0 kPa | 500 kPa | 0.1 kPa | Air, Non-corrosive gas, Non-flammable gas | 12 to 24 VDC ?10%, Ripple (p-p) 10% or less (With power supply polarity protection) | 40 mA or less | NPN or PNP open collector 2 outputs (Selectable) | 80 mA | 28 V (With NPN output) | 2 V or less (With load current of 80 mA) | 2.5 ms or less (Response time selections with anti-chattering function: 20, 100, 500, 1000, 2000 ms) | Yes | ?0.2% F.S. ?1 digit | Variable (0 or above) Note) | Variable (0 or above) Note) | 0.6 to 5 V ?2.5% F.S. | ?1% F.S. or less | Approx. 1 k | 3 1/2 digit, 7-segment indicator, 1-color display (Red) | ?2% F.S. ?1 digit (at 25C ?3C ambient temperature) | Lights up when output is turned ON. OUT1: Green OUT2: Red | IP40 | Operating: ?5 to 50C, Stored: ?10 to 60C (No freezing or condensation) | Operating and stored: 35 to 85% RH (No condensation) | 1000 VAC for 1 min. between live parts and enclosure | 50 M or more between live parts and enclosure (at 500 VDC Mega) | 10 to 150 Hz, at the smaller of amplitude 1.5 mm or 20 m/s2 in X, Y, Z directions for 2 hours each (De-energized) | 100 m/s2 in X, Y, Z directions 3 times each (De-energized) | ?2% F.S. (at 25C in an operating range of ?5 to 50C) | Oil-resistant vinyl cabtire cable5 cores, Cross section: 0.15 mm2 (AWG26) Insulator O.D.: 1.0 mm | Compliant with CE Marking, UL (CSA) and RoHS compliant |
