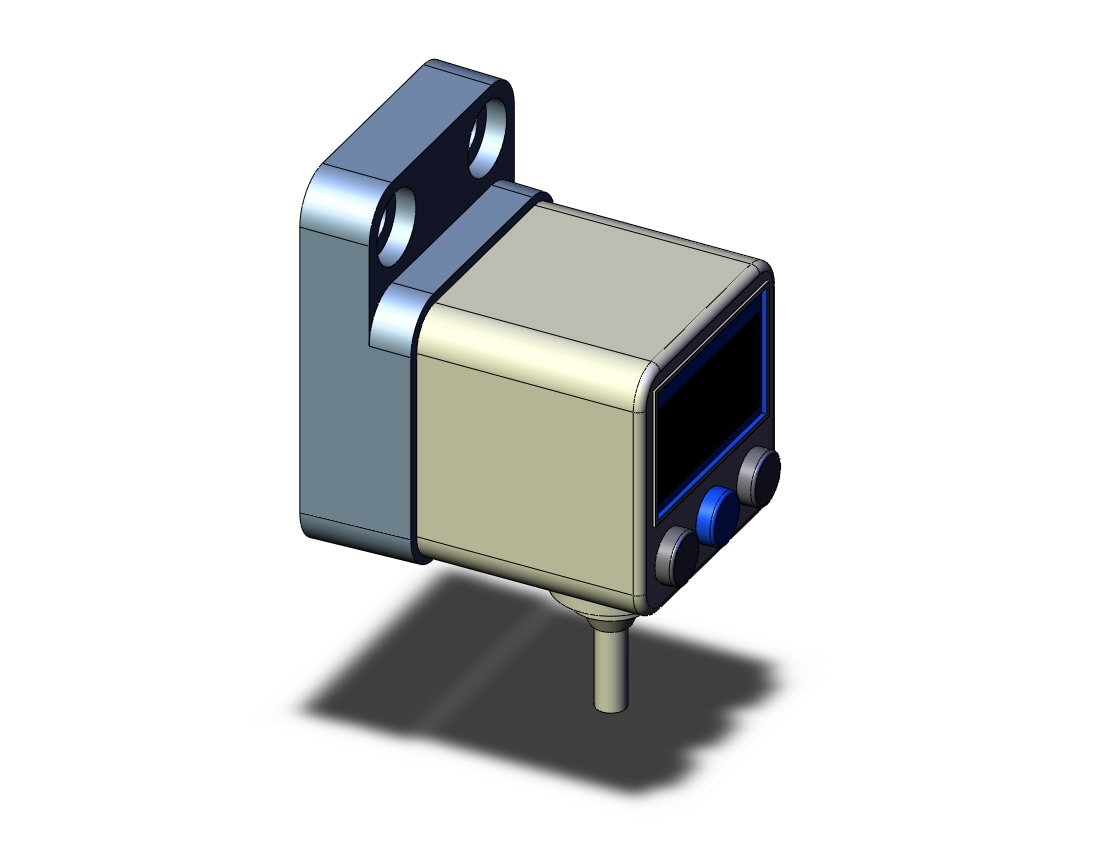

| ZSE40A | 0.00 to ?14.69 psi | 1.45 to ?15.23 psi | 72.5 psi | 0.01 psi | Air, Non-corrosive gas, Non-flammable gas | 12 to 24 VDC ?10%, Ripple (p-p) 10% or less (with power supply polarity protection) | 45 mA or less | NPN or PNP open collector 2 outputs (Selectable) | 80 mA | 28 V (at NPN output) | 1 V or less | 2.5 ms (with anti-chattering function: 20, 100, 500, 1000, 2000 ms) | Yes | ?0.2% F.S. ?1 digit | Variable (0 or above) Note 1) | Variable (0 or above) Note 1) | 1 to 5 V ?2.5% F.S. | ?1% F.S. or less | Approx. 1 k | 4 to 20 mA ?2.5% F.S. | ?1% F.S. or less | Maximum load impedance: 300 (Power supply voltage 12 V)600 (Power supply voltage 24 V)Minimum load impedance: 50 | Non-voltage input (Reed or Solid state), Low level: 0.4 V or less, 5 ms or longer input | 3 1/2-digit, 7-segment, 2-color LCD (Red/Green) | ?2% F.S. ?1 digit (Ambient temperature of 77 ?5F) | Lights up when output is turned ON. OUT1, OUT2: Orange | IP65 | Operating: 23 to 122F, Stored: 14 to 140F (No freezing or condensation) | Operating/Stored: 35 to 85% RH (No condensation) | 1000 VAC for 1 minute between live parts and case | 50 M or more between live parts and case (at 500 VDC Mega) | 10 to 150 Hz at whichever is smaller of 1.5 mm amplitude or 20 m/s2 acceleration, in X, Y, Z directions, for 2 hours each (De-energized) | 100 m/s2 in X, Y, Z directions, 3 times each (De-energized) | ?2% F.S. (Based on 77F) | Oilproof heavy-duty vinyl cable?3.5, 2 m Conductor area: 0.15 mm2 (AWG26) Insulator O.D.: 0.95 mm | CE marking, UL (CSA), RoHS compliance |
