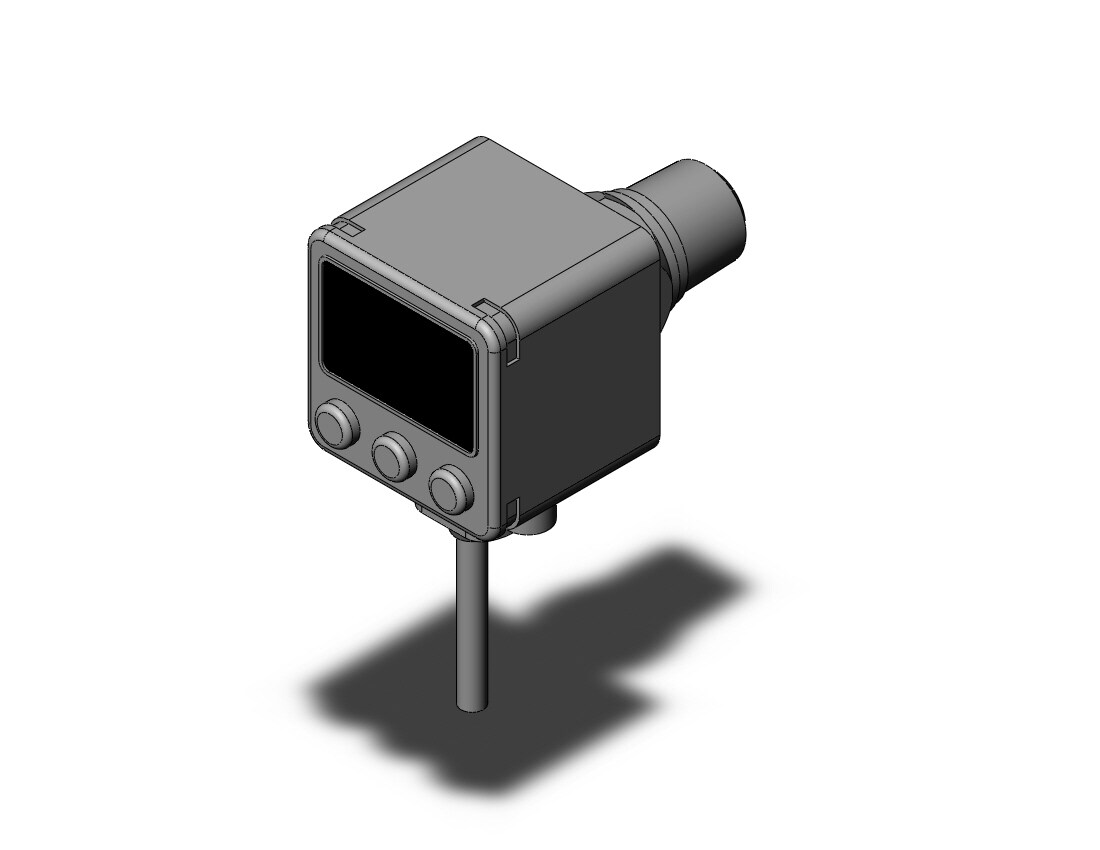

| ZSE80F | ?100.0 to 100.0 kPa | ?110.0 to 110.0 kPa | 2 MPa | Pressure sensor: Stainless steel 630, Fitting: Stainless steel 304 | Fluids do not corrode stainless steel 630 and 304 | R1/4, NPT1/4, G1/4?, URJ1/4, TSJ1/4, Rc1/8Piping direction: Rear/Bottom | 12 to 24 VDC ?10%, Ripple (p-p) 10% or less (with power supply polarity protection) | 45 mA or less | NPN 1 output, NPN 2 outputs, PNP 1 output, PNP 2 outputs | 80 mA | 28 V (at NPN output) | 1 V or less (with load current of 80 mA) | 2.5 ms (with anti-chattering function: 20, 100, 500, 1000, 2000 ms) | Yes | ?0.2% F.S. ?1 digit | Variable (0 or above) | Variable (0 or above) | 0.6 to 5 V ?2.5% F.S. | ?1% F.S. or less | Approx. 1 k | 2.4 to 20 mA?2.5% F.S. | ?1% F.S. or less | Maximum load impedance: 300 (Power supply voltage 12 V)600 (Power supply voltage 24 V)Minimum load impedance: 50 | Non-voltage input (Reed or Solid state), Low level: 0.4 V or less, 5 ms or longer input | 3 1/2-digit, 7-segment, 2-color LCD (Red/Green) | ?2% F.S. ?1 digit (Ambient temperature of 25 ?3C) | Lights up when output is turned ON. OUT1, OUT2: Orange | Anti-chattering, Zero-out, Key lock function, Auto-preset, Auto-shift, Unit display switching, Power-saving mode | IP65 | Operating: 0 to 50C, Stored: ?10 to 60C (No freezing or condensation) | Operating/Stored: 35 to 85% RH (No condensation) | 250 VAC for 1 minute between live parts and case | 2 M or more between live parts and case (at 50 VDC Mega) | 10 to 150 Hz at whichever is smaller of 1.5 mm amplitude or 20 m/s2 acceleration, in X, Y, Z directions, for 2 hours each (De-energized) | 100 m/s2 in X, Y, Z directions, 3 times each (De-energized) | ?3% F.S. (Based on 25C, within operating temperature range) | Oilproof heavy-duty vinyl cable, 3 cores (N.P) ?3.5, 2 m4 cores (A.B) Conductor area: 0.15 mm2 (AWG26) 5 cores (R.T.S.V) Insulator O.D.: 0.95 mm | CE marking, UL/CSA, RoHS compliance |
