FMW-4300-2-PM-P80 - Adjustable 4 Amp Low Deadband Pressure Switch - 2 PSI, Panel Mount, Polysulfone 1/16" ID Barbed Fitting

Part Number: FMW-4300-2-PM-P80

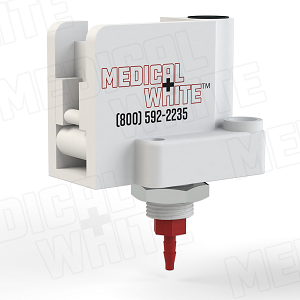

Series image - for reference only
Please pull down this page to review full catalog specifications PDF

Your Price: $32.90

Availability:

Available to Ship: 0 qty

The item you are trying to purchase is currently out of stock.
Please enter your name, email, and phone number below.
We will contact you as soon as this product is available.

Name: *

Email: *

Phone: *

Verification: *

Type the word above...

Quantity

Description

The FMW-4300 Series pressure to electric switches are designed for applications requiring narrow operating deadband. They are available in adjustment ranges from 2 to 100 PSI full scale. Two mounting styles, plus a wide variety of options including factory pre-set and solvent bonded barbed fittings, make the FMW-4300 series an excellent choice for the O.E.M.

Specifications

Contact Form: Single Pole, Double Throw
Terminations: .110 Quick-Connect
Agency Compliances: UL / CSA Approved Microswitch
Operating Speed: 25 MSEC
Materials:
- Body: Polysulfone¹
- Diaphragm: Polyurethane¹
- Spring: Stainless Steel¹
- Other: Nylon, Carbon Filled Nylon, Acetal
Temperature Range: 40° - 150° F (4° - 66° C)
Repeatability: ±2% F.S. OR .15 PSI, (1.8 kPa) whichever is greater, after 10,000 cycles
Weight: 20 grams

Part Number	Adjustment Range (PSI)		Maximum Overpressure (PSI)	Deadband (PSI)²		Std. Current Rating²
	Min.	Max.		Typ.	Max.
FMW-4300-2	.2	2	30	.1	.2	4A
FMW-4300-5	.5	5	30	.2	.35	4A
FMW-4300-15	.5	15	45	.4	.6	4A
FMW-4300-30	.5	30	60	.6	1.0	4A
FMW-4300-60	.5	60	120	1.5	2.5	4A
FMW-4300-100	1	100	120	2.0	3.5	4A

¹ Wetted materials. ² For special deadband or current requirements, contact factory.

Ordering Information

Stocked Configurations Below Can Ship Same Day

Part Number	Description
FMW-4300-2-FM-B80	2 PSI, Flush Mount, Nylon 1/16" ID Barbed Fitting
FMW-4300-60-FM-B80	60 PSI, Flush Mount, Nylon 1/16" ID Barbed Fitting
FMW-4300-100-FM-B80	100 PSI, Flush Mount, Nylon 1/16" ID Barbed Fitting
FMW-4300-2-FM-B85	2 PSI, Flush Mount, Nylon 1/8" ID Barbed Fitting
FMW-4300-60-FM-B85	60 PSI, Flush Mount, Nylon 1/8" ID Barbed Fitting
FMW-4300-100-FM-B85	100 PSI, Flush Mount, Nylon 1/8" ID Barbed Fitting
FMW-4300-2-FM-P80	2 PSI, Flush Mount, Polysulfone 1/16" ID Barbed Fitting
FMW-4300-60-FM-P80	60 PSI, Flush Mount, Polysulfone 1/16" ID Barbed Fitting
FMW-4300-100-FM-P80	100 PSI, Flush Mount, Polysulfone 1/16" ID Barbed Fitting
FMW-4300-2-FM-P85	2 PSI, Flush Mount, Polysulfone 1/8" ID Barbed Fitting
FMW-4300-60-FM-P85	60 PSI, Flush Mount, Polysulfone 1/8" ID Barbed Fitting
FMW-4300-100-FM-P85	100 PSI, Flush Mount, Polysulfone 1/8" ID Barbed Fitting
FMW-4300-2-FM-OT1	2 PSI, Flush Mount, 1/8" O.D. Tube One Touch Fitting
FMW-4300-60-FM-OT1	60 PSI, Flush Mount, 1/8" O.D. Tube One Touch Fitting
FMW-4300-100-FM-OT1	100 PSI, Flush Mount, 1/8" O.D. Tube One Touch Fitting
FMW-4300-2-FM-OT2	2 PSI, Flush Mount, 5/32" O.D. Tube One Touch Fitting
FMW-4300-60-FM-OT2	60 PSI, Flush Mount, 5/32" O.D. Tube One Touch Fitting
FMW-4300-100-FM-OT2	100 PSI, Flush Mount, 5/32" O.D. Tube One Touch Fitting
FMW-4300-2-PM-B80	2 PSI, Panel Mount, Nylon 1/16" ID Barbed Fitting
FMW-4300-60-PM-B80	60 PSI, Panel Mount, Nylon 1/16" ID Barbed Fitting
FMW-4300-100-PM-B80	100 PSI, Panel Mount, Nylon 1/16" ID Barbed Fitting
FMW-4300-2-PM-B85	2 PSI, Panel Mount, Nylon 1/8" ID Barbed Fitting
FMW-4300-60-PM-B85	60 PSI, Panel Mount, Nylon 1/8" ID Barbed Fitting
FMW-4300-100-PM-B85	100 PSI, Panel Mount, Nylon 1/8" ID Barbed Fitting
FMW-4300-2-PM-P80	2 PSI, Panel Mount, Polysulfone 1/16" ID Barbed Fitting
FMW-4300-60-PM-P80	60 PSI, Panel Mount, Polysulfone 1/16" ID Barbed Fitting
FMW-4300-100-PM-P80	100 PSI, Panel Mount, Polysulfone 1/16" ID Barbed Fitting
FMW-4300-2-PM-P85	2 PSI, Panel Mount, Polysulfone 1/8" ID Barbed Fitting
FMW-4300-60-PM-P85	60 PSI, Panel Mount, Polysulfone 1/8" ID Barbed Fitting
FMW-4300-100-PM-P85	100 PSI, Panel Mount, Polysulfone 1/8" ID Barbed Fitting
FMW-4300-2-PM-OT1	2 PSI, Panel Mount, 1/8" O.D. Tube One Touch Fitting
FMW-4300-60-PM-OT1	60 PSI, Panel Mount, 1/8" O.D. Tube One Touch Fitting
FMW-4300-100-PM-OT1	100 PSI, Panel Mount, 1/8" O.D. Tube One Touch Fitting
FMW-4300-2-PM-OT2	2 PSI, Panel Mount, 5/32" O.D. Tube One Touch Fitting
FMW-4300-60-PM-OT2	60 PSI, Panel Mount, 5/32" O.D. Tube One Touch Fitting
FMW-4300-100-PM-OT2	100 PSI, Panel Mount, 5/32" O.D. Tube One Touch Fitting
