LM15 (6440002) Thomas Oil-less Linear Diaphragm Compressor / Vacuum Pump

Part Number: LM15 (6440002)

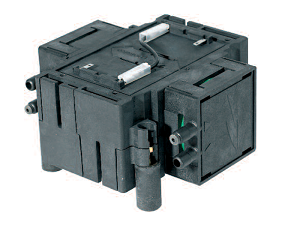

Series image - for reference only
Please pull down this page to review full catalog specifications PDF

Your Price: $553.84

Availability:

The item you are trying to purchase is currently out of stock.
Please enter your name, email, and phone number below.
We will contact you as soon as this product is available.

Name: *

Email: *

Phone: *

Verification: *

Type the word above...

Quantity

Description
Documents: tab 3

Thomas oil-less linear diaphragm compressor / vacuum pump, 230/50/1

Flow Rate:
- 12.5 LPM
Max Pressure:
- 4.35 PSIG / 121 in H20 / 300 mbar
Max Vacuum:
- 10.3 in HgV / -350 mbar
Voltage (50 Hz): 230
Frequency (Hz): 50
Phase: 1-phase
Item Dimensions:
- Length: 4.21 in / 107 mm
- Width: 4.37 in / 111 mm
- Height: 2.56 in / 65 mm
Net Weight: 2.2 lbs. / 1 Kg

Series Configured Datasheet
