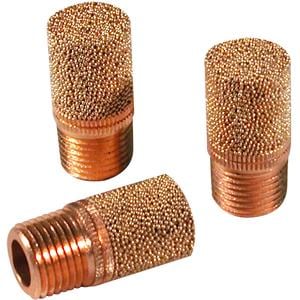

AN(BC Sintered), Silencer, General Purpose, Metric

Series AN silencers offer various styles and low backpressure in a compact, easy mounting design. The noise reduction has been improved to 30 dB(A) and the case is UL94-V0 grade, flame resistant material. Series AN is available with M, R or NPT threads.

• Fluid: compressed air
• Maximum operating pressure: 1.0MPa
• Noise reduction: 13-21 dB(A)
• Effective area mm ² : 1-20
• Ambient & fluid temperature: 5 - 50° C

Configuration Options

Select Product Options

	Select values from the drop down lists or make appropriate selections to configure the part number.
Size	-- Pick an Option -- 01 (Exhaust:Circumference/Axis,Noise Reduction:16dB,Effective Area:6/20mm2) 10 (Exhaust:Circumference,Noise Reduction:21dB,Effective Area:35mm2) 20 (Exhaust:Circumference,Noise Reduction:13/18dB,Effective Area 1/5mm2)
Port Size	-- Pick an Option -- 01 (1/8) M3 M5
	Options in: Gray are not compatible with other selected option value. Red conflict with another selected option value. Amber are not recommended.
