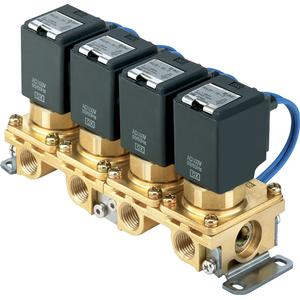

VV2CL2/3/4, Manifold Base, Standard

Series VC is a multipurpose, direct operated, 2 port solenoid valve for air. Special construction reduces operating resistance and moving parts for improved longevity and wear resistance. A built-in rectifier eliminates AC coil burning and buzzing. The VC enclosure is IP65 equivalent.

• Standard manifold for VCL2/3/4
• Body material: C37
• Seal material: FKM
• Maximum stations: 10
• OUT port sizes: 1/8, 1/4
• IN port size: 3/8

Configuration Options

Select Product Options

	Select values from the drop down lists or make appropriate selections to configure the part number.
Series	-- Pick an Option -- 2 (Class 2 VCL20) 3 (Class 3 VCL30) 4 (Class 4 VCL40)
Stations	-- Pick an Option -- 2 Stations 3 Stations 4 Stations 5 Stations 6 Stations 7 Stations 8 Stations 9 Stations 10 Stations
Port Size	-- Pick an Option -- 01 [1/8 (6A)] 02 [1/4 (8A)]
Thread	-- Pick an Option -- Rc F (G) N (NPT) T (NPTF)
	Options in: Gray are not compatible with other selected option value. Red conflict with another selected option value. Amber are not recommended.
