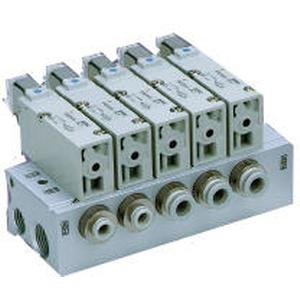

VV3QZ*5, 200/300 Series Manifold, Base Mounted

Series VQZ base mount solenoid valves combine convenience with durability and performance in a more traditional mounting style. Series VQZ Body Ported Solenoid Valves combine flexibility with high performance and long life in an inline body style.

• Bar stock type valve manifold for VQZ200/300 series valves
• Optional DIN rail mount
• Side porting
• Maximum 20 stations available as standard
• 12 port sizes available

Configuration Options

Select Product Options

	Select values from the drop down lists or make appropriate selections to configure the part number.
Series	-- Pick an Option -- 2 (VQZ200) 3 (VQZ300)
Stations	-- Pick an Option -- 2 Stations 3 Stations 4 Stations 5 Stations 6 Stations 7 Stations 8 Stations 9 Stations 10 Stations 11 Stations 12 Stations 13 Stations 14 Stations 15 Stations 16 Stations 17 Stations 18 Stations 19 Stations 20 Stations
Port Size	-- Pick an Option -- 01 (Rc1/8) 01T (NPTF1/8) 01F (G1/8) 02 (Rc1/4) 02T (NPTF1/4) 02F (G1/4) C4 (ø4 One-touch Fitting) C6 (ø6 One-touch Fitting) C8 (ø8 One-touch Fitting) C10 (ø10 One-touch Fitting) N3T (5/32" One-touch Fitting) N7T (1/4" One-touch Fitting) N9T (5/16" One-touch Fitting) N11T (3/8" One-touch Fitting)
Option	-- Pick an Option -- None D (DIN Rail Mounting) D0 (DIN Rail Mount w/o DIN Rail) D0R (DIN Rail Mount w/o DIN Rail, w/External Pilot) DR (DIN Rail Mount w/External Pilot) R (External Pilot)
CE Compliant	-- Pick an Option -- No Q (CE Marked)
	Options in: Gray are not compatible with other selected option value. Red conflict with another selected option value. Amber are not recommended.
