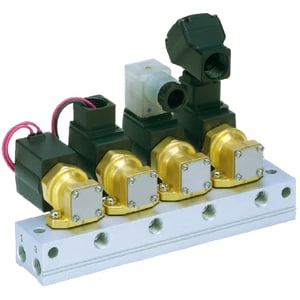

VX3*, Direct Operated 3 Port Solenoid Valve for Manifold

The VX3000 series is a direct operated, 3 port solenoid valve, for use with a wide variety of fluids. When used in combination with the manifold, configuration can be changed from N.C. to N.O. and from N.O. to N.C. by simply changing a gasket. Valves are easily replaced without changing existing piping.

• Direct operated, 3 port solenoid valve for manifold - New VX Series
• Max. system pressure (MPa): 2.0
• Flow characteristics: 0.08 ~ 0.5 Cv
• Voltage: 48, 100, 200, 110, 220, 230, 240VAC; 12, 24VDC

Configuration Options

Select Product Options

	Select values from the drop down lists or make appropriate selections to configure the part number.
Model	-- Pick an Option -- 31 32 33
Orifice	-- Pick an Option -- 1 (1.5mm) 2 (2.2mm) 3 (3mm) 4 (4mm)
Style	-- Pick an Option -- 1 (N.C., Manifold) 3 (N.O., Manifold) 5 (COM., Manifold)
Option	-- Pick an Option -- Brass (C37) Body & Shading Coil, NBR Seals, Class B Coil A [Brass (C37) Body & Shading Coil, FKM Seals, Class B Coil] B [Brass (C37) Body & Shading Coil, EPDM Seals, Class B Coil] D [Brass (C37) Cu Body & Shading Coil, FKM Seals, Class H Coil] E [Brass (C37) Cu Body & Shading Coil, EPDM Seals, Class H Coil] V [Brass, (C37) Body & Shading Coil, FKM Seals, Class B Coil, Oil-free]
Suffix	-- Pick an Option -- Standard Z (Oil-free)
Voltage	-- Pick an Option -- 1 (100VAC 50/60HZ) 2 (200VAC 50/60HZ) 3 (110VAC 50/60HZ) 4 (220VAC 50/60HZ) 5 (24VDC) 6 (12VDC) 7 (240VAC 50/60HZ) 8 (48VAC 50/60HZ) J (230VAC 50/60HZ)
Electrical Entry	-- Pick an Option -- C (Conduit) D (DIN Connector) DO (DIN w/o Connector) G (Grommet) T (Conduit Terminal)
Surge Suppressor	-- Pick an Option -- None L (Light) S (Surge Suppressor) Z (Light & Surge Suppressor)
Rectifier	-- Pick an Option -- None (for DC or AC Class H Coil) R (AC Class B Coil w/Full-wave Rectifier)
	Options in: Gray are not compatible with other selected option value. Red conflict with another selected option value. Amber are not recommended.
