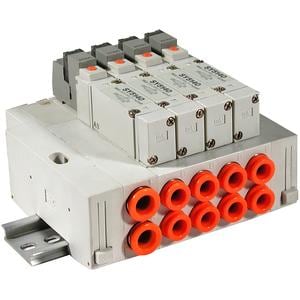

SS5X5-45, 5000 Series, Stacking Manifold, Individual Wiring

The SX series unique design combines both solenoid assemblies (when using double solenoid 2/3 position) on the same side of the valve, opposite the ports, allowing for greater space savings and simplified wiring access. The SX series valves are available with numerous manifold options which allow for easier installation and improved operation.

• Stacking manifold, DIN rail mounted
• Base mounted type
• Individual wiring (45 type)
• Valve stations: 2 to 20
• One-touch fittings: C4, C6, C8, N3, N7, N9

Configuration Options

Select Product Options

	Select values from the drop down lists or make appropriate selections to configure the part number.
Stations	-- Pick an Option -- 2 Stations 3 Stations 4 Stations 5 Stations 6 Stations 7 Stations 8 Stations 9 Stations 10 Stations 11 Stations 12 Stations 13 Stations 14 Stations 15 Stations 16 Stations 17 Stations 18 Stations 19 Stations 20 Stations
SUP/EXH Block Mounting	-- Pick an Option -- B (Both Sides 2~20 Stations) D (D Side 2~10 Stations) U (U Side 2~10 Stations)
Specifications	-- Pick an Option -- Standard Internal Pilot R (External Pilot) RS (External Pilot, Silencer) S (Internal Pilot, Built-in Silencer)
Port Size	-- Pick an Option -- C4 (ø4 One-touch Fitting) C6 (ø6 One-touch Fitting) C8 (ø8 One-touch Fitting) N3 (5/32" One-touch Fitting) N7 (1/4" One-touch Fitting) N9 (5/16" One-touch Fitting)
	Options in: Gray are not compatible with other selected option value. Red conflict with another selected option value. Amber are not recommended.
