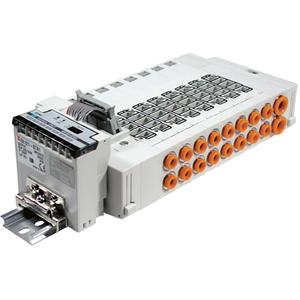

SS5Y5-45S*, 5000 Series, Stacking Manifold, DIN Rail Mount, Serial Transmission

Series SY offers major advances in valve performance for cost-effective solutions to your requirements. The series offers high flow with low power consumption in a compact design. The SY is available in body ported or base mounted styles and can be used individually or manifold mounted.

• Serial interface manifold for SY3000 base mounted valves
• Minimizes wire mass and wire connection labor
• 6 port sizes available
• Maximum 16 stations available as standard
• DIN rail mounted
• Common supply and exhaust can be located on U, D or both sides

Configuration Options

Select Product Options

	Select values from the drop down lists or make appropriate selections to configure the part number.
Connector	-- Pick an Option -- 0 (w/o SI Unit) C (Omron SYSBUS Wire System) F1 (NKE SI Unit for 16 Point Uni-wire System) H (NKE Uni-wire H System) J1 (Sunx S-LINK System 16 Point Output) J2 (Sunx S-LINK System 8 Point Output) Q (DeviceNet Omron CompoBus/D) R1 (Omron CompoBus/S 16 Points) R2 (Omron CompoBus/S 8 Points) V (CC-link System (Mitsubishi Electric Corp.))
Stations	-- Pick an Option -- 2 Stations 3 Stations 4 Stations 5 Stations 6 Stations 7 Stations 8 Stations 9 Stations 10 Stations 11 Stations 12 Stations 13 Stations 14 Stations 15 Stations 16 Stations
Mounting Position	-- Pick an Option -- B (Both Sides 2~10 Stations) D (D Side 2~10 Stations) U (U Side 2~10 Stations)
Specifications	-- Pick an Option -- Standard Internal Pilot R (External Pilot) RS (External Pilot, Silencer) S (Internal Pilot, Built-in Silencer)
Port Size	-- Pick an Option -- C4 (ø4 One-touch Fitting) C6 (ø6 One-touch Fitting) C8 (ø8 One-touch Fitting) N3 (5/32" One-touch Fitting) N7 (1/4" One-touch Fitting) N9 (5/16" One-touch Fitting)
	Options in: Gray are not compatible with other selected option value. Red conflict with another selected option value. Amber are not recommended.
