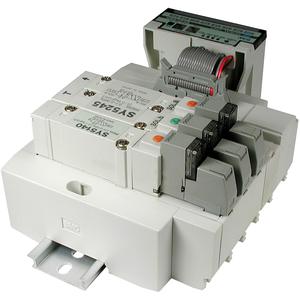

SS5Y5-45S1D, 5000 Series, Stacking Manifold, DIN Rail Mount, Sharp Serial Unit

Series SY offers major advances in valve performance for cost-effective solutions to your requirements. The series offers high flow with low power consumption in a compact design. The SY is available in body ported or base mounted styles and can be used individually or manifold mounted.

• Serial interface manifold for SY5000 base mounted valves
• Satellite (Sharp) interface unit
• SI unit can be mounted on D or U side
• Common supply and exhaust can be located on U, D
  or both sides
• Maximum 16 stations available as standard
• 6 port sizes available

Configuration Options

Select Product Options

	Select values from the drop down lists or make appropriate selections to configure the part number.
Serial Interface Unit	-- Pick an Option -- D Side U Side
Stations	-- Pick an Option -- 2 Stations 3 Stations 4 Stations 5 Stations 6 Stations 7 Stations 8 Stations 9 Stations 10 Stations 11 Stations 12 Stations 13 Stations 14 Stations 15 Stations 16 Stations
Mounting Position	-- Pick an Option -- B (Both Sides 2~16 Stations) D (D Side 2~10 Stations) U (U Side 2~10 Stations)
Specifications	-- Pick an Option -- Standard Internal Pilot R (External Pilot) RS (External Pilot, Silencer) S (Internal Pilot, Built-in Silencer)
Port Size	-- Pick an Option -- C4 (ø4 One-touch Fitting) C6 (ø6 One-touch Fitting) C8 (ø8 One-touch Fitting) N3 (5/32" One-touch Fitting) N7 (1/4" One-touch Fitting) N9 (5/16" One-touch Fitting)
	Options in: Gray are not compatible with other selected option value. Red conflict with another selected option value. Amber are not recommended.
