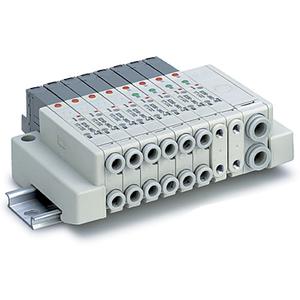

SS5Z3-60, 3000 Series, Cassette Type, Non Plug-in

Series SZ3000 is a 5 port solenoid valve, body ported type with a cassette style manifold. The SZ series offers high reliability and long life of 50 million cycles or more. The connector entry direction can be changed from top to side with a simple operation. Low power consumption and a fast response time of 10ms are obtained with a unique pilot valve construction.

• Cassette style, non plug-in type manifold
• Common supply and exhaust
• Maximum 20 stations available as standard
• Internal and external pilot available
• Fitting specs: straight, elbow (upward, downward)

Configuration Options

Select Product Options

	Select values from the drop down lists or make appropriate selections to configure the part number.
Stations	-- Pick an Option -- 2 Stations 3 Stations 4 Stations 5 Stations 6 Stations 7 Stations 8 Stations 9 Stations 10 Stations 11 Stations 12 Stations 13 Stations 14 Stations 15 Stations 16 Stations 17 Stations 18 Stations 19 Stations 20 Stations
SUP/EXH Block Mounting	-- Pick an Option -- B (Both Sides 2~20 Stations) D (D Side 2~10 Stations) U (U Side 2~10 Stations)
Specifications	-- Pick an Option -- Standard Internal Pilot R (External Pilot)
SUP/EXH Block Fitting	-- Pick an Option -- Straight B (Elbow Fitting, Downward) L (Elbow Fitting, Upward)
	Options in: Gray are not compatible with other selected option value. Red conflict with another selected option value. Amber are not recommended.
