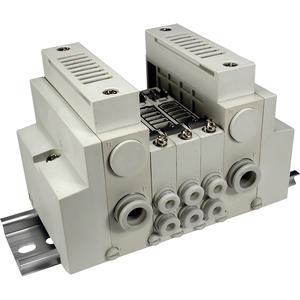

VV5Q12-C, 1000 Series, Base Mounted Manifold, Non Plug-in, Connector Kit

VQ valves are ideal for applications requiring high speed, frequent operation, stable response time and long service life. Innovative mounting methods allow valves to be changed without entirely disassembling the manifold. Built-in one-touch fittings save piping time and labor.

• Stacking type manifold for VQ1*1* valve
• Valves wired individually
• Maximum 16 stations available as standard
• 16 port sizes available
• DIN rail mount

Configuration Options

Select Product Options

	Select values from the drop down lists or make appropriate selections to configure the part number.
Stations	-- Pick an Option -- 1 Station 2 Stations 3 Stations 4 Stations 5 Stations 6 Stations 7 Stations 8 Stations 9 Stations 10 Stations 11 Stations 12 Stations 13 Stations 14 Stations 15 Stations 16 Stations
Port Size	-- Pick an Option -- B3 (Elbow Bottom Porting w/ø3.2 One-touch Fitting) B4 (Elbow Bottom Porting w/ø4 One-touch Fitting) B5 (M5 Thread) B6 (Elbow Bottom Porting w/ø6 One-touch Fitting) C3 (ø3.2 One-touch Fitting) C4 (ø4 One-touch Fitting) C6 (ø6 One-touch Fitting) L3 (Elbow Top Piping w/ø3.2 One-touch Fitting) L4 (Elbow Top Ported ø4 One-touch Fitting) L5 (Elbow M5 Thread for Top Porting) L6 (Elbow Top Ported w/ø6 One-touch Fitting) M5 Thread M5T (10-32 UNF Thread) N1 (1/8" One-touch Fitting) N3 (5/32" One-touch Fitting) N7 (1/4" One-touch Fitting)
Option	-- Pick an Option -- BD (Back Pressure Check Valves, DIN Rail Mounting) BDN (Back Pressure Check Valves, DIN Rail, Name Plate) BDNS (Back Pressure Check Valves, DIN Rail, Name Plate, Silencer) BDS (Back Pressure Check Valves, DIN Rail, Silencer) D (DIN Rail Mounting) DN (DIN Rail Mount & Name Plate) DNS (DIN Rail Mount, Name Plate, Built-in Silencer) DS (Din Rail Mount & Built-in Silencer)
	Options in: Gray are not compatible with other selected option value. Red conflict with another selected option value. Amber are not recommended.
