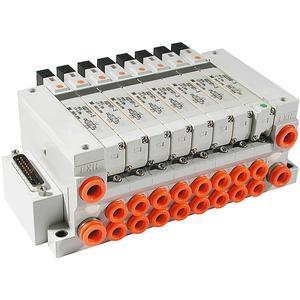

VV5Q21-F, 2000 Series, Base Mounted Manifold, Plug-in, D-sub Connector

VQ valves are ideal for applications requiring high speed, frequent operation, stable response time and long service life. Innovative mounting methods allow valves to be changed without entirely disassembling the manifold. Built-in one-touch fittings save piping time and labor.

• Base mounted, plug-in type manifold for VQ2*0* valve
• D-sub connector (25 pin standard, 15 pin option)
• Top or side receptacle position
• Maximum 24 stations available as standard
• 12 port sizes available
• Optional DIN rail mount

Configuration Options

Select Product Options

	Select values from the drop down lists or make appropriate selections to configure the part number.
Stations	-- Pick an Option -- 2 Stations 3 Stations 4 Stations 5 Stations 6 Stations 7 Stations 8 Stations 9 Stations 10 Stations 11 Stations 12 Stations
Port Size	-- Pick an Option -- B4 (Elbow Bottom Porting w/ø4 One-touch Fitting) B6 (Elbow Bottom Porting w/ø6 One-touch Fitting) B8 (Elbow Bottom Porting w/ø8 One-touch Fitting) C4 (ø4 One-touch Fitting) C6 (ø6 One-touch Fitting) C8 (ø8 One-touch Fitting) L4 (Elbow Top Ported ø4 One-touch Fitting) L6 (Elbow Top Ported w/ø6 One-touch Fitting) L8 (Elbow Top Ported w/ø8 One-touch Fitting) N3 (5/32" One-touch Fitting) N7 (1/4" One-touch Fitting) N9 (5/16" One-touch Fitting)
Kit Name	-- Pick an Option -- F (D-sub Connector 25 Pin)
Electrical Entry	-- Pick an Option -- S (Side) U (Upper)
Cable Length	-- Pick an Option -- 0 (w/o Cable 25 Pin) 1 (1.5m Cable 25 Pin) 2 (3.0m Cable 25 Pin) 3 (5.0m Cable 25 Pin) A (w/o Cable 15 Pin - Max. 7 Stations)
Option 1	-- Pick an Option -- None B (Back Pressure Check Valve for All Stations)
Option 2	-- Pick an Option -- None D (DIN Rail Mounting)
Option 3	-- Pick an Option -- None N (Name Plate)
Option 4	-- Pick an Option -- None R (External Pilot)
Option 5	-- Pick an Option -- None S (Built-in Silencer, Direct Exhaust)
CE Compliant	-- Pick an Option -- No Q (CE Compliant)
	Options in: Gray are not compatible with other selected option value. Red conflict with another selected option value. Amber are not recommended.
