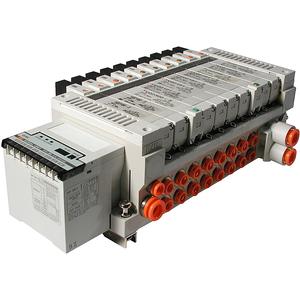

VV5Q21-S, 2000 Series, Base Mounted Manifold, Plug-in, Serial Transmission Unit

VQ valves are ideal for applications requiring high speed, frequent operation, stable response time and long service life. Innovative mounting methods allow valves to be changed without entirely disassembling the manifold. Built-in one-touch fittings save piping time and labor.

• Base mounted plug-in type manifold for VQ2*0* valve
• Serial interface (SI) type
• Maximum 16 stations available as standard
• 12 port sizes available
• Optional DIN rail mount
• Optional IP65 enclosure

Configuration Options

Select Product Options

	Select values from the drop down lists or make appropriate selections to configure the part number.
Stations	-- Pick an Option -- 2 Stations 3 Stations 4 Stations 5 Stations 6 Stations 7 Stations 8 Stations
Port Size	-- Pick an Option -- B4 (Elbow Bottom Porting w/ø4 One-touch Fitting) B6 (Elbow Bottom Porting w/ø6 One-touch Fitting) B8 (Elbow Bottom Porting w/ø8 One-touch Fitting) C4 (ø4 One-touch Fitting) C6 (ø6 One-touch Fitting) C8 (ø8 One-touch Fitting) L4 (Elbow Top Ported ø4 One-touch Fitting) L6 (Elbow Top Ported w/ø6 One-touch Fitting) L8 (Elbow Top Ported w/ø8 One-touch Fitting) N3 (5/32" One-touch Fitting) N7 (1/4" One-touch Fitting) N9 (5/16" One-touch Fitting)
SI Unit	-- Pick an Option -- 0 (w/o SI Unit) A (General Purpose Style Series EX300) B (Mitsubishi MELSECNET/MINI-S3 Data Link System) C (Omron SYSMAC) D (Sharp Satellite I/O Link System) F1 (NKE SI Unit for 16 Point Uni-wire System) J1 (SUNX S-LINK System 16 Point Output) J2 (SUNX S-LINK System 8 Point Output)
Option 1	-- Pick an Option -- None B (Back Pressure Check Valve for All Stations)
Option 2	-- Pick an Option -- None D (DIN Rail Mounting)
Option 3	-- Pick an Option -- None N (Name Plate)
Option 4	-- Pick an Option -- None R (External Pilot)
Option 5	-- Pick an Option -- None S (Built-in Silencer, Direct Exhaust)
	Options in: Gray are not compatible with other selected option value. Red conflict with another selected option value. Amber are not recommended.
