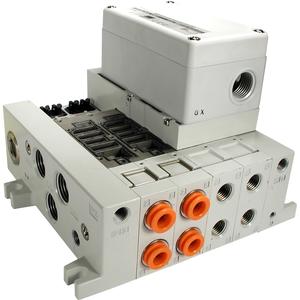

VV5Q41-S, 4000 Series, Base Mounted Manifold, Plug-in, Serial Transmission Unit

VQ valves are ideal for applications requiring high speed, frequent operation, stable response time and long service life. Innovative mounting methods allow valves to be changed without entirely disassembling the manifold. Built-in one-touch fittings save piping time and labor.

• Base mounted plug-in manifold for VQ4*0* valve
• Serial interface (SI) unit connection
• Many PLC types
• Maximum 18 stations available as standard
• 12 port sizes available
• Optional IP65 enclosure

Configuration Options

Select Product Options

	Select values from the drop down lists or make appropriate selections to configure the part number.
Stations	-- Pick an Option -- 4 Stations (Note: 2 Stations are Required for Serial Unit Mounting) 5 Stations (Note: 2 Stations are Required for Serial Unit Mounting) 6 Stations (Note: 2 Stations are Required for Serial Unit Mounting) 7 Stations (Note: 2 Stations are Required for Serial Unit Mounting) 8 Stations (Note: 2 Stations are Required for Serial Unit Mounting) 9 Stations (Note: 2 Stations are Required for Serial Unit Mounting) 10 Stations (Note: 2 Stations are Required for Serial Unit Mounting)
Port Size	-- Pick an Option -- 02 (Rc1/4) 02T (NPT1/4) 03 (Rc3/8) 03T (NPT3/8) B (Bottom Ported Rc1/4) BT (Bottom Piping NPT1/4) C10 (ø10 One-touch Fitting) C12 (ø12 One-touch Fitting) C8 (ø8 One-touch Fitting) N11T (3/8" One-touch Fitting) N7T (1/4" One-touch Fitting) N9T (5/16" One-touch Fitting)
Kit Type	-- Pick an Option -- 0 (w/o SI Unit) B (Mitsubishi MELSECNET/MINI-S3 Data Link System) C (Omron SYSBUS Wire System) D (Sharp Satellite I/O Link System) F1 (NKE SI Unit for 16 Point Uni-wire System) J1 (SUNX S-LINK System 16 Point Output) J2 (SUNX S-LINK System 8 Point Output) K (Fuji Electric T-LINK Mini System) R1 (Omron CompoBus/S 16 Points) R2 (Omron CompoBus/S 8 Points)
Option 1	-- Pick an Option -- None CD (Exhaust Cleaner for D Side Mounting) SD (Built-in Silencer, Direct Exhaust from D Side)
Option 2	-- Pick an Option -- None W (Dust Poof IP65 Rated)
	Options in: Gray are not compatible with other selected option value. Red conflict with another selected option value. Amber are not recommended.
