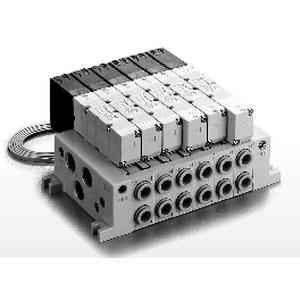

VV5Q45-C, 4000 Series, Base Mounted Manifold, Non Plug-in, Connector Kit

VQ valves are ideal for applications requiring high speed, frequent operation, stable response time and long service life. Innovative mounting methods allow valves to be changed without entirely disassembling the manifold. Built-in one-touch fittings save piping time and labor.

• Base mounted plug lead manifold for VQ4*5* valve
• Connector type
• Maximum 16 stations available as standard
• Bottom or side piping available
• 12 port sizes available
• Optional IP65 enclosure

Configuration Options

Select Product Options

	Select values from the drop down lists or make appropriate selections to configure the part number.
Stations	-- Pick an Option -- 2 Stations 3 Stations 4 Stations 5 Stations 6 Stations 7 Stations 8 Stations 9 Stations 10 Stations 11 Stations 12 Stations 13 Stations 14 Stations 15 Stations 16 Stations
Port Size	-- Pick an Option -- 02 (Rc1/4) 02T (NPTF1/4) 03 (Rc3/8) 03T (NPTF3/8) B (Bottom Ported Rc1/4) BT (Bottom Ported NPTF1/4) C10 (ø10 One-touch Fitting) C12 (ø12 One-touch Fitting) C8 (ø8 One-touch Fitting) N11T (3/8" One-touch Fitting) N7T (1/4" One-touch Fitting) N9T (5/16" One-touch Fitting)
Control Unit	-- Pick an Option -- None A (Air Filter w/Auto Drain, Regulator, Air Release Valve) AP (Air Filter w/Auto Drain, Regulator, Air Release Valve,Pressure Switch) C (Air Release Valve, Blank Plate for Filter Regulator) E (Air Release Valve) F (Air Filter w/Auto Drain, Regulator, Blank Plate for Air Release Valve) G (Air Filter w/Manual Drain, Regulator, Blank Plate for Air Release Valve) M (Air Filter w/Manual Drain, Regulator, Air Release Valve) MP(Air Filter w/Manual Drain, Regulator, Air Release Valve, Pressure Switch)
Release Valve Rated Voltage	-- Pick an Option -- w/o Air Release Valve 1 (100VAC 50/60HZ) 5 (24VDC)
Option 1	-- Pick an Option -- None CD (Exhaust Cleaner for D Side Mounting) CU (Exhaust Cleaner for U Side Mounting) SD (Built-in Silencer, Direct Exhaust from D Side) SU (Built-in Silencer, Direct Exhaust from U Side)
Option 2	-- Pick an Option -- None W (Dust Poof IP65 Rated)
	Options in: Gray are not compatible with other selected option value. Red conflict with another selected option value. Amber are not recommended.
