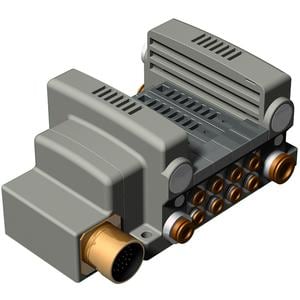

VV5QC21-M, 2000 Series, Base Mounted Mfld, Plug-in, Multi-Connector Box

The VQC series has five standard wiring packages bringing a world of ease to wiring and maintenance work, while the protective enclosures of three of them conform to IP67 standards for protection from dust and moisture. The use of multi-pin connectors to replace wiring inside manifold blocks provides flexibility when adding stations or changing manifold configuration. The VQC series has outstanding response times and long life.

• Base mount plug-in manifold for VQC2000 valves
• Multi-connector kit
• Conforms to IP67 for protection from dust and moisture
• Maximum 24 stations available as standard
• Optional DIN rail mount

Configuration Options

Select Product Options

	Select values from the drop down lists or make appropriate selections to configure the part number.
Stations	-- Pick an Option -- 1 Station 2 Stations 3 Stations 4 Stations 5 Stations 6 Stations 7 Stations 8 Stations 9 Stations 10 Stations 11 Stations 12 Stations
Port Size	-- Pick an Option -- B4 (Elbow Bottom Ported w/ø4 One-touch Fitting) B6 (Elbow Bottom Porting w/ø6 One-touch Fitting) B8 (Elbow Bottom Porting w/ø8 One-touch Fitting) BN3 (Bottom Ported Elbow w/ø5/32" NPT One-touch Fitting) BN7 (Bottom Ported Elbow w/ø1/4" NPT One-touch Fitting) BN9 (Bottom Ported Elbow w/ø5/16" NPT One-touch Fitting) C4 (ø4 One-touch Fitting) C6 (ø6 One-touch Fitting) C8 (ø8 One-touch Fitting) L4 (Elbow Top Ported ø4 One-touch Fitting) L6 (Elbow Top Ported w/ø6 One-touch Fitting) L8 (Elbow Top Ported w/ø8 One-touch Fitting) LN3 (Elbow Top Ported w/5/32" One-touch Fitting) LN7 (Elbow Top Ported w/1/4" One-touch Fitting) LN9 (Elbow Top Ported w/5/16" One-touch Fitting) N3 (5/32" One-touch Fitting) N7 (1/4" One-touch Fitting) N9 (5/16" One-touch Fitting)
Cable Length	-- Pick an Option -- 0 (w/o Cable) 1 (1.5m Cable) 2 (3.0m Cable) 3 (5.0m Cable)
Option 1	-- Pick an Option -- None B (Back Pressure Check Valve for All Stations) BD (Back Pressure Check Valves, DIN Rail Mounting) BD0 (Back Pressure Check Valves, DIN Rail Mounting Bracket w/o Din Rail) D (DIN Rail Mounting) D0 (DIN Rail Mount w/o DIN Rail)
Option 2	-- Pick an Option -- None N (Name Plate) NR (Name Plate, External Pilot) NRS (Name Plate, External Pilot, Silencer) NRST (Name Plate, Ext. Pilot, Silencer, Branched P & R Ports on U Side) NRT (Name Plate, Ext. Pilot, Branched P & R Ports on U Side) NS (Name Plate, Silencer) NST (Name Plate, Silencer, Branched P & R Ports on U Side) NT (Name Plate, Branched P & R Ports on U Side) R (External Pilot) RS (External Pilot, Silencer) RST (Ext. Pilot, Silencer, Branched P & R Ports on U Side) RT (External Pilot, Branched P & R Ports on U Side) S (Built-in Silencer, Direct Exhaust) ST (Silencer, Branched P & R Ports on U Side) T (Branched P & R Ports on U Side)
	Options in: Gray are not compatible with other selected option value. Red conflict with another selected option value. Amber are not recommended.
