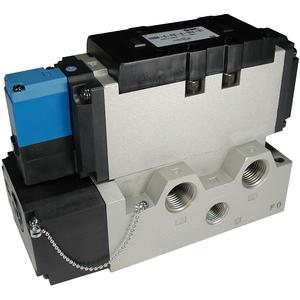

VS*8-8 (for USA), ISO Interface Solenoid Valve

VSS/VSR  size 1, 2 & 3 are plug-in, base mounted interface valves conforming to ISO standards. The valve design offers maximum flexibility and is available in either a high flow rubber seal (model VSR), or matched ground spool and sleeve (model VSS). The lateral plug-in style manifold makes it easy to increase or decrease the manifold stations without wiring work.  In addition, SMC now offers a light weight, large capacity mini ISO valve (size 01).

• Fluid: air, inertia gas
• Maximum operating pressure: 1.0MPa
• Minimum operating pressure: 0.1MPa
• Flow rate: Cv 4.0
• Coil rated voltage: 12, 24VDC
• Rating: IP67, NEMA4 Hose Down

Configuration Options

Select Product Options

	Select values from the drop down lists or make appropriate selections to configure the part number.
Seal Type	-- Pick an Option -- R (Rubber) S (Metal)
Configuration	-- Pick an Option -- FG (2-position) FHG (3-Posiiton, Closed Center) FIG (3-Position, Pressure Center) FJG (3-Position, Exhaust Center) YHZ (3-Position, Dual Closed Center) YIZ (3-Position, Dual Pressure Center) YJZ (3-Position, Dual Exhaust Center) YZ (2-position, Dual Pressure)
Number of Solenoids	-- Pick an Option -- D (Double) S (Single)
Voltage	-- Pick an Option -- 1Z (100VAC/50Hz, 115VAC/60HZ) 2Z (200VAC/50Hz, 230VAC/60Hz) 3EZ (24VDC) 4EZ (12VDC)
Subplate	-- Pick an Option -- w/o Subplate A03T (Side 3/8) A04T (Side 1/2) A06T (Side 3/4) B03T (Bottom 3/8)
Pilot	-- Pick an Option -- Pilot Exhaust through Footprint V1 (External Individual Pilot Exhaust)
Option	-- Pick an Option -- Standard Internal Pilot X1 (External Pilot Supply)
	Options in: Gray are not compatible with other selected option value. Red conflict with another selected option value. Amber are not recommended.
