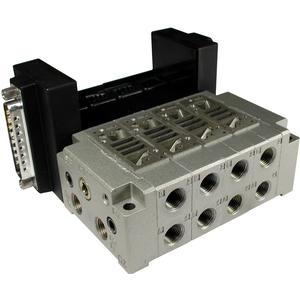

NVV5ZS3, 3000 Series, Stacking Manifold, Plug-in, Non Plug-in, North American

The VZS series is a 5 port pilot solenoid, base mounted type valve, available in a plug-in or non plug-in style. The metal seal makes it possible for use in non-lubrication and dry air. Manifold options include control unit, serial interface unit and a coaxial fitting.

• Plug-in type:   stacking w/D-sub connector;
  stacking w/insert plug with lead wire
• Non plug-in type:   stacking w/wiring for every valve
• Maximum number of stations:   16 (plug-in); 24 (non plug-in)
• Applicable valves:   NVZS3?50
• Optional control units available

Configuration Options

Select Product Options

	Select values from the drop down lists or make appropriate selections to configure the part number.
Base Mounted Wiring	-- Pick an Option -- 51 (Non Plug-in Individual Lead Wire Entry) 51FB (Plug-in w/D-Sub Connector on Both Sides) 51FD (Plug-in w/D-Sub Connector on D Side) 51FU (Plug-in w/D-Sub Connector on U Side) 51G (Plug-in w/Insert Plug Lead)
Stations	-- Pick an Option -- 2 Stations 3 Stations 4 Stations 5 Stations 6 Stations 7 Stations 8 Stations 9 Stations 10 Stations 11 Stations 12 Stations 13 Stations 14 Stations 15 Stations 16 Stations 17 Stations 18 Stations 19 Stations 20 Stations 21 Stations 22 Stations 23 Stations 24 Stations
Port Size	-- Pick an Option -- 01T (NPTF1/8) 02T (NPTF1/4) B7T (NPTF1/4 One-touch Fitting) B9T NPTF5/16 One-touch Fitting)
Control Unit	-- Pick an Option -- None A1(AirReleaseValve,FilterReg. w/Press.DiffAutoDrain,BlankPlate,100VAC50/60Hz) A2(AirReleaseValve,FilterReg.w/Press.DiffAutoDrain,BlankPlate,200VAC50/60Hz) A5(AirReleaseValve,FilterReg.w/Press.DiffAutoDrain,BlankPlate,24VDC) AP1(AirReleaseValve,FilterReg.w/Press.DiffAutoDrain,Press.Sw,100VAC50/60Hz) AP2(AirReleaseValve,FilterReg.w/Press.DiffAutoDrain,Press.Sw,200VAC50/60Hz) AP5(AirReleaseValve,FilterReg.w/Press.DiffAutoDrain,Press.Sw,24VDC) C1 (AirReleaseValve,BlankPlates for Filter Reg&Press.Sw,100VAC50/60HZ) C2 (AirReleaseValve,BlankPlates for Filter Reg&Press.Sw,200VAC50/60HZ) C5 (AirReleaseValve,BlankPlates for Filter Reg&Press.Sw,24VDC) E1 (AirReleaseValve, Stations Required:1, 100VAC50/60HZ) E2 (AirReleaseValve, Stations Required:1, 200VAC50/60Hz) E5 (Air ReleaseValve, Stations Required:1, 24VDC) F (Filter Reg. w/Auto Drain, Blank Plates for Air Release Valves & Press. Sw.) G (Filter Reg. w/Manual Drain,Blank Plates for Air Release Valve&Press. Switch) M1(AirReleaseValve,FilterReg.w/ManualDrain,BlankPlate/Press.Sw,100VAC50/60Hz) M2(AirReleaseValve,FilterReg.w/ManualDrain,BlankPlate/Press.Sw,200VAC50/60Hz) M5(AirReleaseValve,FilterReg.w/ManualDrain,BlankPlate/Press.Sw,24VDC) MP1(AirReleaseValve,FilterReg.w/ManualDrain,Press.Sw,100VAC50/60Hz) MP2(AirReleaseValve,FilterReg.w/ManualDrain,Press.Sw,200VAC50/60Hz) MP5(AirReleaseValve,FilterReg.w/ManualDrain,Press.Sw,24VDC)
