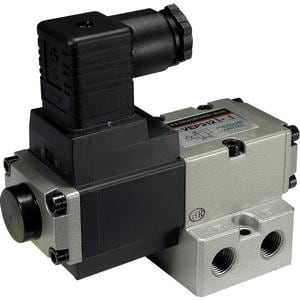

VEP, Electro-Pneu Proportional Valve, Pressure Style, Metric

A proportional control valve system provides the ability to infinitely control the position of the internal spool assembly which increases or decreases the amount of flow or pressure being released from the valve. SMC offers 2 types of proportional control valves, a pressure type (N)VEP which controls secondary pressure by varying the current through the solenoid, and a flow rate type (N)VEF which controls air flow by varying current through the solenoid.

• Electro-pneumatic proportional valve
• Pressure type, metric
• Port sizes: 1/4, 3/8, 1/2, 3/4
• Ambient temperature: 5~50°C
• Operating pressure: 9.9 Kgf/cm²

Configuration Options

Select Product Options

	Select values from the drop down lists or make appropriate selections to configure the part number.
Body Size	-- Pick an Option -- 2 (Body Size 2) 4 (Body Size 4)
Power Amplifier	-- Pick an Option -- 0 (VEA130/131) 1 (VEA250/251/252)
Standard Characteristics	-- Pick an Option -- 1 (VEP312: 0.05~0.65MPa, VEP314: 0.005~0.15MPa) 2 (VEP312: 0.1~0.9MPa)
Port Size	-- Pick an Option -- w/o Sub-plate 02 (1/4) 03 (3/8) 04 (1/2) 06 (3/4)
	Options in: Gray are not compatible with other selected option value. Red conflict with another selected option value. Amber are not recommended.
