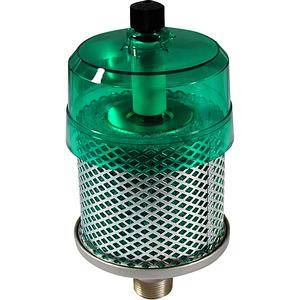

AMC, Exhaust Cleaner, Metric

Series AMC exhaust cleaners insure clean plant air and reduce noise pollution over 35dB. The AMC series also removes over 99.9% of oil mist. Choose from R(PT), NPT or G(PF) thread styles.

• Fluid: compressed air
• Effective area mm ² (Cv):
  male thread style 16 (0.88) - 550 (31);
  female thread style 12 (0.66) - 55 (3.1)
• Noise reduction: 35db or more
• Oil mist removal: 99.9% or more
• Element supply pressure: 0.1MP or less
• Ambient & fluid temperature: 5 - 60° C

Configuration Options

Select Product Options

	Select values from the drop down lists or make appropriate selections to configure the part number.
Size	-- Pick an Option -- 2 (1/4) 3 (3/8) 5 (3/4) 6 (1) 8 (1/2) 9 (2)
Thread	-- Pick an Option -- 1 (Male Thread) 2 (Female Thread)
Thread Style	-- Pick an Option -- Rc(PT), R(PT) F [G(PF)] N (NPT)
Port Size	-- Pick an Option -- 02 (1/4) 03 (3/8) 04 (1/2) 06 (3/4) 10 (1) 14 (1 1/2) 20 (2)
Accessory	-- Pick an Option -- None B (Bracket) BD (Bracket+Drain Guide) D (Drain Guide)
	Options in: Gray are not compatible with other selected option value. Red conflict with another selected option value. Amber are not recommended.
